best sale!420kg mini crawler dumper truck with best price

FOB Price

USD $7,000 - $25,000 / Set

1 Set(Min.Order)

Supply Ability 100 Set / Sets per Month
Port Qindao Tianjing Shanghai

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Capacity (Load)	1 - 10t	Horsepower	Other, 8hp
Condition	New	Transmission Type	Automatic
Emission Standard	Euro 2	Fuel Type	Diesel
Gross Vehicle Weight	350	Place of Origin	Shandong, China
Brand Name	WOLWA	Model Number	GN03
Dimensions (L x W x H) (mm)	14987641300mm

Product Description

best sale!420kg mini crawler dumper truck with best price

Product Description

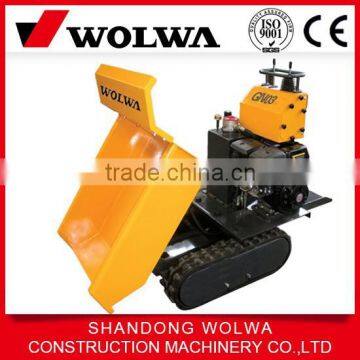

Mini dumper GN03 introduction:
Mini dumper is mainly composed of hopper and walking chassis,Through material in gravity or hydraulic cylinder thrust tilting unloading.Discharge according to the different azimuth,Front to discharge,Rotary discharge,Rollover unloading,High fulcrum discharge,Lift tilting discharge and so on.

Max operating height(H)	1300mm	51.18 in
Max lifting height(H3)	1238mm	48.74 in
Skip Max Dumping height(H2)	60mm	2.36 in
Dimensions
Skip Dumping Angle(α)	80°
Wheel base(L)	620mm	24.4 in
Total length(L1)	1498mm	58.98 in
Ground clearance(H1)	55mm 2.2 in
Tread width ,centerline to centerline(A)	550mm	21.65in
Total width(B)	764mm	30.08 in
Minimum turn radius R	912mm	35.9in
total height	1300mm

Parameter
Engine	Single-cylinder, four-stroke ,air-cooled
	Rated power	7KW(8HP) /3600rpm
	Maximum torque	23.5N.m/2400 rpm
	Noise (Db)	≤80
Hydraulic system	Hydraulic pressure(Mpa)	15
	Cycle time(s)	Dumping	Retracting
		2.28	1.3
Technical Parameter	Rated loading	350Kg 771.6 Lb
	Skip capacity(level)	0.13m3 4.6 ft3
	Speed	3.3Km/h 2.05mile/h
	Operating weight	420Kg 925.9Lb

Our Guarantee:

Service:
1. Excellent after-sale service teams
2. One year guarantee for the whole machine
3. 24hours service by calling or email
4. General inspection on fixing before packing
5. Oversea service center acceptable
Quality control:
1. All products must go through checks before manufacturing process
2. Every production line is equipped in an individual QC to ensure well-done production.
