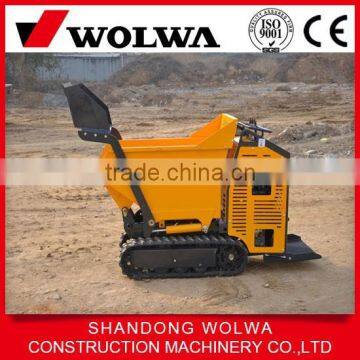

mini crawler dump truck with 0.2m3 capacity for sale
USD $7,000 - $25,000
/ Set
1 Set(Min.Order)
- 100 Set / Sets per Month
- Qindao Tianjing Shanghai
You May Like
-
57 degree Skip dumping angle mini crawler dumper
-
factory price wheel type mini dump truck
-
4x4 mini dump truck wheel type for sale in china
-
hot sale portable 1ton mini wheel dump truck for sale
-
mini truck dumper GN03, mini dumper, garden mini dumper
-
garden hydraulic crawler mini dumper GN03 with CE certificate
Product Details
| Capacity (Load) | 1 - 10t | Horsepower | Other, 10hp | |
| Condition | New | Transmission Type | Automatic | |
| Emission Standard | Euro 2 | Fuel Type | Diesel | |
| Gross Vehicle Weight | 600 | Place of Origin | Shandong, China | |
| Brand Name | WOLWA | Model Number | GN05 | |
| Dimensions (L x W x H) (mm) | 1150*648*515mm |
Product Description
best sale!500kg mini diesel dumper with high quality
Product Description
Mini dumper GN05 introduction:
Mini dumper is mainly composed of hopper and walking chassis,Through material in gravity or hydraulic cylinder thrust tilting unloading.Discharge according to the different azimuth,Front to discharge,Rotary discharge,Rollover unloading,High fulcrum discharge,Lift tilting discharge and so on.
| Main parameter | ||||
| model | GN05 | |||
| Length | 1150 | |||
| Width | 648 | |||
| Height | 515 | |||
| capacity | 0.2 m3 | |||
| Skid capacity | 0.04 m3 | |||
| Skip dumping angle | 57°/47° | |||
| Angle from the ground | 10° | |||
| Engine | ||||
| Place of origin | China | |||
| Fuel | Diesel | |||
| Rated power | 6.8Kw | |||
| Rated speed | 3000r/min | |||
| Number of Cylinder | 1 | |||
| Hydraulic system | ||||
| Motor | China | |||
| duplex pump | China | |||
| System pressure | 16MPa | |||
| Flow | 12ml/min | |||
| capacity of hydraulic oil tank | 19.4L | |||
| Body of machine | ||||
| Operating weight | 600kg | |||
| Load capacity | 500kg | |||
| oil tank capacity | 5.5L | |||
| Speed | 3.5km/h | |||
| gradeability | 15% | |||
Our Guarantee:
Service:
1. Excellent after-sale service teams
2. One year guarantee for the whole machine
3. 24hours service by calling or email
4. General inspection on fixing before packing
5. Oversea service center acceptable
Quality control:
1. All products must go through checks before manufacturing process
2. Every production line is equipped in an individual QC to ensure well-done production.
