high performance mini dumper crawler for garden manufacturer
- 100 Set / Sets per Month
- Qindao Tianjing Shanghai
You May Like
-
Chinese new brand small crawler garbage dumper truck
-
tracked truck dumper / transporter/crawler truck dumper manufacturer
-
china hydraulic mini truck crawler dumper for sale with low price
-
high performance mini dumper GN05 with CE certificate
-
high quality tracked mini dumper for sale GN05 with CE
-
low price diesel engine super GN05 mini dumper manufacturer
Product Details
| Capacity (Load) | 1 - 10t | Horsepower | Other, 8hp | |
| Condition | New | Transmission Type | Automatic | |
| Emission Standard | Euro 2 | Fuel Type | Diesel | |
| Gross Vehicle Weight | 350 | Place of Origin | Shandong, China | |
| Brand Name | WOLWA | Model Number | GN03 | |
| Dimensions (L x W x H) (mm) | 1498*764*1300mm |
Product Description
Product Introduction

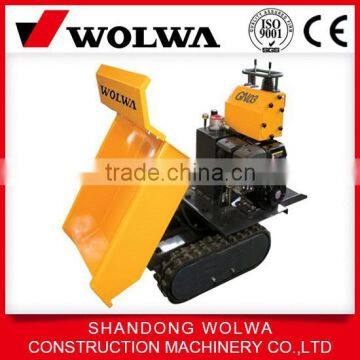

Mini dumper GN03 introduction:
Mini dumper is mainly composed of hopper and walking chassis,Through material in gravity or hydraulic cylinder thrust tilting unloading.Discharge according to the different azimuth,Front to discharge,Rotary discharge,Rollover unloading,High fulcrum discharge,Lift tilting discharge and so on.
Specification
Max operating height(H) | 1300mm | 51.18 in | |||
Max lifting height(H3) | 1238mm | 48.74 in | |||
Skip Max Dumping height(H2) | 60mm | 2.36 in | |||
Skip Dumping Angle(α) | 80° |
| |||
Wheel base(L) | 620mm | 24.4 in | |||
Total length(L1) | 1498mm | 58.98 in | |||
Ground clearance(H1) | 55mm 2.2 in |
| |||
Tread width ,centerline to centerline(A) | 550mm | 21.65in | |||
Total width(B) | 764mm | 30.08 in | |||
Minimum turn radius R | 912mm | 35.9in | |||
Engine | Single-cylinder, four-stroke ,air-cooled | ||||
Rated power | 7KW(8HP) /3600rpm | ||||
Maximum torque | 23.5N.m/2400 rpm | ||||
Noise (Db) | ≤80 | ||||
Hydraulic system | Hydraulic pressure(Mpa) | 15 | |||
Cycle time(s) | Dumping | Retracting | |||
2.28 | 1.3 | ||||
Technical Parameter | Rated loading | 350Kg 771.6 Lb | |||
Skip capacity(level) | 0.13m3 4.6 ft3 | ||||
Speed | 3.3Km/h 2.05mile/h | ||||
Operating weight | 420Kg 925.9Lb | ||||
Figure Photos
