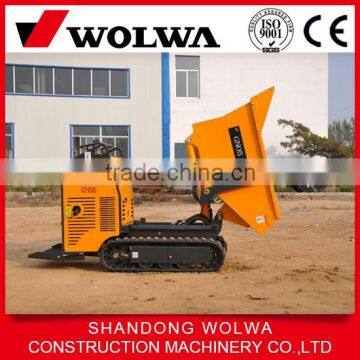

best price mini dumper loading weight 500kg GN05 from china
USD $7,000 - $25,000
/ Set
1 Set(Min.Order)
- 100 Set / Sets per Month
- Qindao Tianjing Shanghai
You May Like
-
50kg china made hydraulic mini dumper 0.2CBM GN05
-
GN05 dumpers truck direct factory supplier in china
-
mini tracked crawler dumper for farm and garden using
-
China export GN10 mini dumper 1 ton with good quality
-
china factory supply diesel engine super GN10 mini dumper with low price
-
high quality GN10 mini dumper 1000kg for export with CE
Product Details
| Capacity (Load) | 1 - 10t | Horsepower | Other, 10hp | |
| Condition | New | Transmission Type | Automatic | |
| Emission Standard | Euro 2 | Fuel Type | Diesel | |
| Gross Vehicle Weight | 600 | Place of Origin | Shandong, China | |
| Brand Name | WOLWA | Model Number | GN05 | |
| Dimensions (L x W x H) (mm) | 1150*648*515mm |
Product Description
Product Introduction
Mini dumper GN05 introduction:
Mini dumper is mainly composed of hopper and walking chassis,Through material in gravity or hydraulic cylinder thrust tilting unloading.Discharge according to the different azimuth,Front to discharge,Rotary discharge,Rollover unloading,High fulcrum discharge,Lift tilting discharge and so on.
Specification
model | GN05 | |||
| ||||
Length | 1150 | |||
Width | 648 | |||
Height | 515 | |||
capacity | 0.2 m3 | |||
Skid capactiy | 0.04 m3 | |||
Skip dumping angle | 57°/47° | |||
Angle from the ground | 10° | |||
Engine | ||||
Place of origin | China | |||
Fuel | Diesel | |||
Rated power | 6.8Kw | |||
Rated speed | 3000r/min | |||
Number of Cylinder | 1 | |||
Hydraulic system | ||||
Motor | China | |||
duplex pump | China | |||
System pressure | 16MPa | |||
Flow | 12ml/min | |||
capacity of hydraulic oil tank | 19.4L | |||
Body of machine | ||||
Operating weight | 600kg | |||
Load capacity | 500kg | |||
oil tank capacity | 5.5L | |||
Speed | 3.5km/h | |||
gradeability | 15% | |||
Figure Photos
Company Information
Shandong Wolwa Construction Machinery Co., Ltd is an advanced technology industry integrating research and development, production and sales. For ten years, Wolwa Group, with the goal of "Forging the first class brand, Being the pioneer of the industry", adheres to scientific and technological innovation, and walks on the way to different development. Relying on its advantage in talent, technology and capital, the Wolwa has also opened a new chapter in high-end equipment manufacturing.
