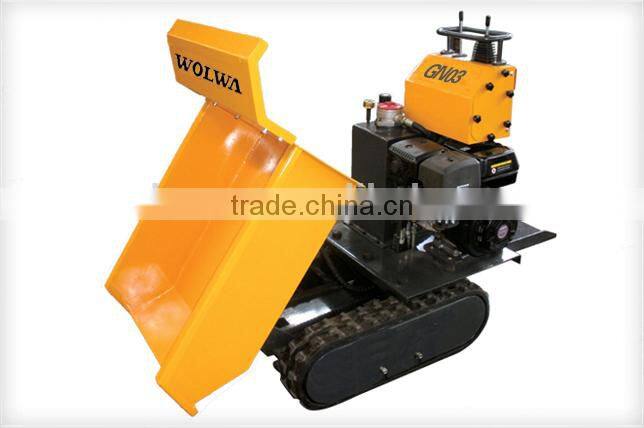

8HP Mini Crawler Dumper Truck Made in China
US$ 7,000 - 25,000
/ Set
1 Set(Min. Order)
- Qindao Tianjing Shanghai
You May Like
Product Details
| Capacity (Load) | 1 - 10t | Horsepower | Other, 8hp | |
| Condition | New | Transmission Type | Automatic | |
| Emission Standard | Euro 2 | Fuel Type | Diesel | |
| Gross Vehicle Weight | 350 | Place of Origin | Shandong, China | |
| Brand Name | WOLWA | Model Number | GN03 | |
| Dimensions (L x W x H) (mm) | 1498*764*1300mm |
Product Description
best sale!420kg mini crawler dumper truck with best price
Product Description
Mini dumper GN03 introduction:
Mini dumper is mainly composed of hopper and walking chassis,Through material in gravity or hydraulic cylinder thrust tilting unloading.Discharge according to the different azimuth,Front to discharge,Rotary discharge,Rollover unloading,High fulcrum discharge,Lift tilting discharge and so on.

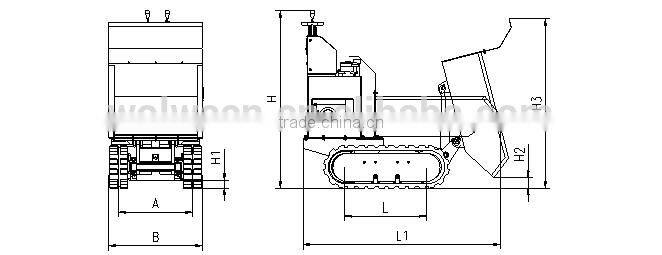

| Max operating height(H) | 1300mm | 51.18 in |
| Max lifting height(H3) | 1238mm | 48.74 in |
| Skip Max Dumping height(H2) | 60mm | 2.36 in |
| Dimensions | ||
| Skip Dumping Angle(α) | 80° | |
| Wheel base(L) | 620mm | 24.4 in |
| Total length(L1) | 1498mm | 58.98 in |
| Ground clearance(H1) | 55mm 2.2 in | |
| Tread width ,centerline to centerline(A) | 550mm | 21.65in |
| Total width(B) | 764mm | 30.08 in |
| Minimum turn radius R | 912mm | 35.9in |
| total height | 1300mm | |
| Parameter | |||
| Engine | Single-cylinder, four-stroke ,air-cooled | ||
| Rated power | 7KW(8HP) /3600rpm | ||
| Maximum torque | 23.5N.m/2400 rpm | ||
| Noise (Db) | ≤80 | ||
| Hydraulic system | Hydraulic pressure(Mpa) | 15 | |
| Cycle time(s) | Dumping | Retracting | |
| 2.28 | 1.3 | ||
| Technical Parameter | Rated loading | 350Kg 771.6 Lb | |
| Skip capacity(level) | 0.13m3 4.6 ft3 | ||
| Speed | 3.3Km/h 2.05mile/h | ||
| Operating weight | 420Kg 925.9Lb | ||
Our Guarantee:
Service:
1. Excellent after-sale service teams
2. One year guarantee for the whole machine
3. 24hours service by calling or email
4. General inspection on fixing before packing
5. Oversea service center acceptable
Quality control:
1. All products must go through checks before manufacturing process
2. Every production line is equipped in an individual QC to ensure well-done production.
