Home > Products > dumper truck > China Made Dumper GN10
China Made Dumper GN10
- Qingdao
You May Like
Product Details
| Drive Wheel | 4x4 | Capacity (Load) | 1 - 10t | |
| Horsepower | Other, 22 | Condition | New | |
| Fuel Type | Petrol / Gasoline | Engine Capacity | 4 - 6L | |
| Gross Vehicle Weight | 1100 | Place of Origin | Saint Barthelemy | |
| Brand Name | WOLWA | Model Number | GN10 | |
| Dimensions (L x W x H) (mm) | 3630* 1200* 2660 |
Product Description
china made dumper GN10
Mini dumper GN10 introduction:
Mini dumper is mainly composed of hopper and walking chassis, with the help of the gravity of the bucket material or hydraulic cylinder to
tilting unloading material. It can be devided to front discharge,
rotary discharge, side discharge, high fulcrum discharge (with limited height) and
lift tilting discharge (discharge height can changable), etc.
• Easy operation, more comfortable. Only one pedal control ruuning and one handler control working.
• 4 wheel drive lets you outmuscle challenging terrain, such as mud, sand, snow, steep slopes, etc.
• World-classes diesel engine, big power, more performance.
• 2100mm highest dumping height
• High ground clearance.
• It is not only a small wheel loader with multi-function, but also a high quality dumper.
• Simple cab with seat.
• Operating weight: 1100kg. Operating load: 1000kg
• Dimension(mm): 3630* 1200* 2660
• Multifunction: GN10 small wheel loader can with different attachments for various working needs. A loader serves several purposes. A quick hitch system, you can change attachments easily and quickly.
Attachments can be: backhoe, digger, pallet fork, earthleveller, sweeper, dump bucket, tiller, lawn mower, angle blade, breaker,4 in 1 bucket, snow blower, mixer, lawn aerator, trench filler, trencher,grapple,,auger, stone bucket,auger levers,standard bucket,trailer system, and so on.
Mini dumper GN10 parameter | ||
No. | item | parameter |
1 | working weight | 1000KG |
2 | total weight | 1100KG |
3 | engine | 3M78 China |
4 | turn speed | 3000r/min |
5 | engine model | water cooled cylinder |
6 | power | 16KW |
7 | speed | 1-10 Km/h |
8 | self discharge angle | 45° |
9 | turning angle | ±30 |
10 | gradabillity | 45° |
11 | drive type | 4WD |
12 | braking type | rear wheel braking |
13 | tire model | 10.00/75-15.3 |
14 | hydraulic pump flow | 60L/min |
15 | pressure | 16MP |
16 | oil tank Vol. | 15.3L |
17 | hydraulic oil tank Vol | 30L |
18 | battery | 36AH |
19 | electric current | 36A |
20 | voltage | 12V |
21 | noise | 107dB(A) |

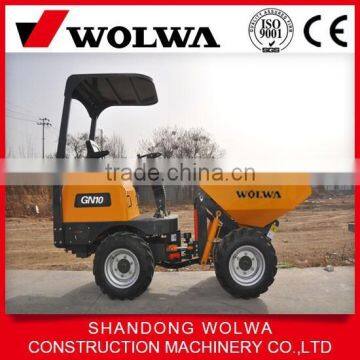

Mini dumper GN10 picture:
