PV Combiner Box for Solar Pumping System
US$ 360 - 410
/ Set
10 Sets(Min. Order)
- Shanghai
- T/T D/P D/A
You May Like
Product Details
| Place of Origin | Anhui, China | Brand Name | Jntech | |
| Model Number | JNHL08 | Type | Other, Solar Power Equipment |
Product Description

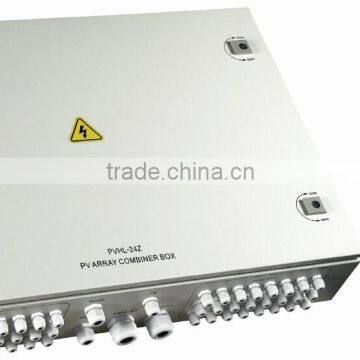

PV Combiner Box for Solar Pumping System
1. Simple Introduction of PV combiner box:
Jntech PV combinex box shall be used for solar pumping system from 22kW to 132kW, in order to reduce connecting cables for easy maintenance and low cost and to keep safety and reliability.
The combiner box has current counter-attack,over current,over voltage function and lighting protection as well.
Customized design possible.
2.Technical Parameters:
| Model | Unit | JNHL06 | JNHL08 | JNHL12 | JNHL16 |
| PV Array Max. Voltage | Vdc | 200~1000 | |||
| Max. numbers of Input | 6 | 8 | 12 | 16 | |
| Max. DC Current for each String | A | 5A/10A/12A/15A | |||
| Output Terminal Type | PG21 | PG21 | PG21 | PG21 | |
| Ingress Protection | IP65 | IP65 | IP65 | IP65 | |
| Dimensions | mm | 500×400×175 | 550×500×175 | 600×500×175 | 650×500×175 |
| Operating Temperature | °C | -25~+60°C | -25~+60°C | -25~+60°C | -25~+60°C |
| Relative Humidity | % | 0~99% | 0~99% | 0~99% | 0~99% |
| Standard Configuration | |||||
| DC Circuit Breaker | Yes | ||||
| SPD | Yes | ||||
| Optional Components | |||||
| Communication | RS485 | ||||
