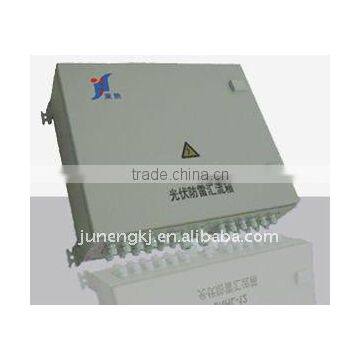

PV combiner box with monitor

Specifications

 PV combiner box with monitor

PV DC Combiner Box

To minimize the cable distance between solar modules and inverters, facilitating maintenance and improving reliability, it is a general practice to install a DC combining device between solar modules and inverters for a large scale grid connected PV power system.  By PV combiner box, different solar PV array strings shall be converged, then connected to the inverter through lightning arrester and DC circuit breakers; such way far more increasing the system safety, as well reducing system installation time and making easy maintenance.

Features

Professional safety security, Easy installation & maintenance

Outdoor design, weather proof

Wide DC voltage input, Max PV array DC1000V

Each string protect by high voltage PV special DC fuse

World famous PHOENIX high voltage PV special lightning arresters

ABB DC circuit breaker used for DC output terminal

Full range of model, customizable and meets various requirements

Technical Specifications
