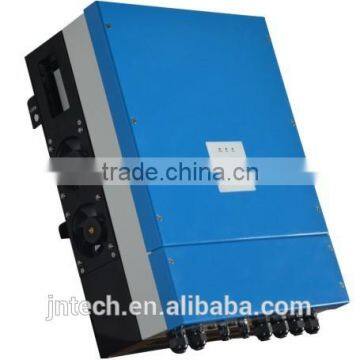

JNTECH 380V 3 Phase 30HP Solar Water Pumping Inverter

FOB Price

US$ 1,310 - 1,670 / Set

1 Set(Min. Order)

Port Shanghai
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Anhui, China	Brand Name	Jntech
Model Number	JNP22KH	Output Power	Other, 22kW
Output Type	Triple	Size	390x532x210mm
Weight	34kg	Input Voltage	max.880Vdc
Output Voltage	380-460V	Type	DC/AC Inverters
Output Frequency	50Hz	Output Current	42A

Product Description

1. Simple Introduction Of JNTECH 380V 3 Phase 30HP Solar Water Pumping Inverter

JNTECH 30HP Solar Pumping Inverter converts DC power produced by PV module into AC power required by the 22KW pump motor. A microprocessor inside inverter machine continuously monitors available energy levels and adjust pump speed, matching energy required to energy available. This enables the system to operate under varying solar insolation levels, and provide water throughout the day and through different seasons. The inverter untilize a high efficiency MPPT algorithm to maximize power harvested from PV module.

2. Product features:
Ø  Wide application and compatible with all kinds of 3 phase, 380V AC pumps;
Ø  Wide MPPT range, max. MPPT efficiency >99% ;
Ø   Modular design, High power density;
Ø   High conversion efficiency, low temperature rise, low noise;
Ø   Independent patent of automatic control technology, perfect system protection, high reliability;
Ø   High efficient cooling system, IP65 design, fanless design, long lifespan;
Ø  Multi-units control function, RS485 and GPRS communication.

3. 22kw solar pump inverter parameters

Max. Input DC voltage	880Vdc
Recommended MPPT voltage	460-850Vdc
Max. Input DC current	49A
Max. MPTT efficiency	99%
Number of Strings	1
Max. applicable motor output power	22KW
Rated output voltage	380-460Vac 3 phase
Output frequency range	0-50/60Hz
Rated output current	49A
Dimension(W/H/D)	390532210 mm
weight	34kg
Max. efficiency	98%
Protective class	I
Protection degree	IP65
Environment temperature	-25ºC-+60ºC above 60ºC need derate operation
Cooling method	Natural cooling
Display	LCD
Communication interface	RS485
Altitude	3000m; above 3000m need derate operating
Noise emission	<50dB
compliance	EN 50178; IEC/EN 62109-1; IEC61800

4. Reference projects' pic:
