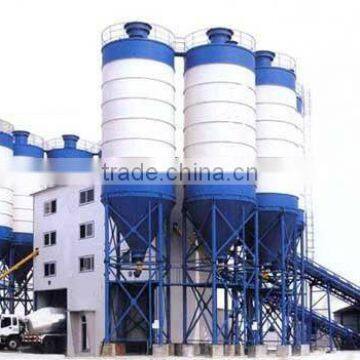

HLS120 Concrete Mixing station

FOB Price

Negotiable / Set

1 Set(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New		Place of Origin	Shandong, China
Brand Name	Lianchuang		Model Number	HLS120

Concrete mixing plant's main advantages are as follows:1.High standard environmental protection.2.Superior Mixing Performance.

FOB

1. Adopting twin forced horizontal shafts stirrer

2. The aggregate is measured alone or accumulated by the electronic scale

3. Water and the additive are measured accurately under the centralized control of

the computer

4. The whole machine adopts PC to control, which is easy to operate and debug

5. Model for feeding aggregate: belt transfer

6. The main electric elements are the devices of Schneider in France; the programmable controller is the product of well-known brand.

Main technical parameter

Model	HLS60	HLS90	HLS120	HLS180	HLS240
Production rate m³/h	60	90	120	180	200
Matching stirring mill	JS1000	JS1500	JS2000	JS3000	JS4000
Storage bin capacity m³	3×15/4×15	3×15/4×15	4×20	4×30	4×30
Discharging height m	3.8	3.8	3.8	3.8	3.8
Total power kW	141	195	230	265	326
Aggregate measuring accuracy %	±2	±2	±2	±2	±2
Cement measuring accuracy %	±1	±1	±1	±1	±1
Water measuring accuracy %	±1	±1	±1	±1	±1
Fly ash measuring accuracy %	±1	±1	±1	±1	±1
Additive measuring accuracy %	±1	±1	±1	±1	±1
Total weight Kg	30000	45000	70000	80000	90000
