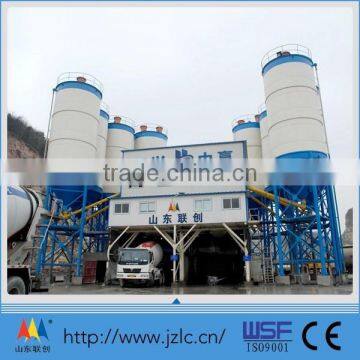

Lianchuang New Condition HLS150 Concrete Batching Plant
- 4 Set / Sets per Month
- Qingdao
- T/T
You May Like
Product Details
| Condition | New | Place of Origin | Shandong, China | |
| Brand Name | LianChuang | Model Number | HLS150 | |
| Certification | ISO9001 | Warranty | one year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
1.Advanced technology2.Easy to operate
3.Low energy consumption
4. New Condition HLS150 Concrete Batching Plant
Technical Parameters
Total system | Model | HZS60 | HZS80 | HZS100 | HZS150 |
Max productivity (under standard conditions) | 60m3/h | 80m3/h | 100m3/h | 150m3/h | |
Discharge height | 4,000mm | 4,000mm | 4,000mm | 4,000mm | |
Working time | 60s | 60s | 60s | 60s | |
Mixer | Mixer model | JS1000 | JS1500(LS15) | JS2000(LS20A) | JS3000(LS30) |
Charging capacity/discharging capacity | 1,600L/1,000L | 2,400L/1,500L | 3,200L/2,000L | 4,500L/3,000L | |
Mixing motor power | 2×18.5 Kw | 2×30 Kw | 2×37 Kw | 2×55 Kw | |
Allowable max diameter of gravel/scree | 60/80mm | 60/80mm | 60/80mm | 80/100mm | |
Batching machine | Motor power | 5.5Kw | 5.5Kw | 5.5Kw | 7.5Kw |
Max capacity | 3,000Kg | 4,000Kg | 5,000Kg | 5,500Kg | |
Batching period | ≤50s | ≤50s | ≤50s | ≤50s | |
Screw conveyor | Conveying capacity | 40t/h | 60t/h | 90t/h | 120t/h |
Motor power | 11Kw | 15Kw | 15Kw | 18.5Kw | |
Angle | 45° | 45° | 30° | 21° | |
Fly ash screw conveyor | Conveying capacity | 20t/h | 40t/h | 40t/h | 60t/h |
Motor power | 7.5Kw | 11Kw | 11Kw | 15Kw | |
Angle | 45° | 45° | 30° | 21° | |
Batch feeder | Conveying capacity | 300t/h | 480t/h | 600t/h | 720t/h |
Width | B=750 | B=800 | B=800 | B=1,000 | |
Power | 15Kw | 22Kw | 37Kw | 45Kw | |
Weighing system | Aggregate measuring accuracy | ±2 | ±2 | ±2 | ±2 |
Powder measuring accuracy | ±1 | ±1 | ±1 | ±1 | |
Water additive weighing precision | ±1 | ±1 | ±1 | ±1 | |
Hydraulic system | Air compressor model | 2V-0.17/10 | 2V-0.17/10 | 2V-0.3/10 | 3W-0.6/10 |
Motor power | 1.5Kw | 1.5Kw | 3Kw | 5.5Kw | |
Water supply system | Pump model | QY25-25-3 | QS50-20-5.5S | GB80-30 | GB80-30 |
Motor power | 3Kw | 5.5Kw | 7.5Kw | 7.5Kw | |
Pump head | 10m | 18m | 30m | 30m | |
Additive system | Additive pump model | 32FS | 32FS | 32FS | 40FS |
Motor power | 1.5Kw | 2.2Kw | 2.2Kw | 2.2Kw | |
Pump head | 10m | 10m | 10m | 18m | |
Total power (exclude bin and screw) | 88Kw | 117Kw | 168Kw | 218Kw | |
Total weight (exclude bin and screw) | 38,000-42,000Kg | 40,000-44,000Kg | 60,000-78,000Kg | 85,000K | |
Most efficient concrete mixing plant,consists of material supply,aggregate batching system,mixing system,electric control system,steel structure.
Main Features:
l The machine adopts JS2000concrete mixer, it has good mixing quality and high efficiency.
l The batching machine adopts PLD1200 , it is measuring nicety and high produce efficiency.
l The cement is store in cement silo and feeding by screw conveyor.
l The water supply system is composed by water tank, water pump and water weigh system. The whole batching and mixing course is automatism by electrical control system (it also can be hand control). The structure is simple and easy to install and debug. It is adopts advanced control system and imports component with high dependability.
We have been awarded ISO9100 Quality Systerm Certificate, ISO14001 Environmental Management Systerm
