Most competitive price concrete batching plant
- 4 Set / Sets per Month
- QingDao
- T/T
You May Like
Product Details
| Condition | New | Place of Origin | Shandong, China | |
| Brand Name | LianChuan | Model Number | HZS50 | |
| Certification | ISO&CE | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
1.Advanced technology2.Easy to operate
3.Low energy consumption
4. Concrete Batching Plant

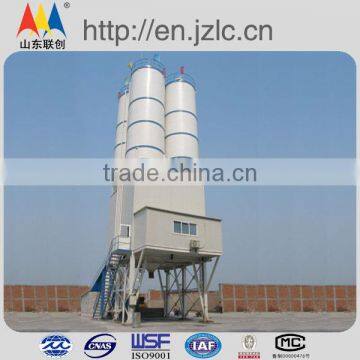

Concrete Batching Plant
Concrete Batching Plant is composed of material supply, batching system, mixing, electrical control and steel structure. Concrete mixers is ideal concrete equipment for building project, building ground and precuts product factory.
Technical parameters of concrete batching plant
Technical parameters of concrete mixing plant | |
Theory productivity | 50m3/h 50m3/h |
Mainframe model | JS1000 JS1000 |
Normal volume of mainframe | 1000L 1000L |
The maximum particle size of mixing aggregate | 80mm 80mm |
Power of mixing motor | 2×18.5kw 2×18.5kw |
Upgrade machines power of aggregate hopper | 18.5kw 18.5kw |
Aggregate batching system | PL1600 PL1600 |
Volume of aggregate soil | 3×6m3 3×6m3 |
Batching capacity of aggregate | 1600L 1600L |
Kinds of aggregate | 3 3 |
Volume and number of powder silo | 50t/100t 50t/100tchoice according to request of user |
Powder screw conveyor | 40t/h 40t/hchoice according to request of user |
G Metering range and accuracy of aggregate G | 3000±2kg 3000±2kg |
W Metering range and accuracy of water W | 400±1kg 400±1kg |
C Weighing range and accuracy of cement C | 500±1kg 500±1kg |
F Weighing range and accuracy of fly ash F | 200±1kg 200±1kgchoice according to request of user |
A Weighing range and accuracy of admixture A | 50±1kg 50±1kg |
Cycle | 75S 75S |
Discharge height | 3800mm 3800mm |
Power of whole machine Power of the whole machine | 76kw About 76kw (not contain screw conveyor) |
Weight of the whole machine | 32t About 17T(not contain screw conveyor and power soil) |
External dimension (L*W*H) | According to the model of disposition and layout |
Main Features
l The machine adopts JS1000concrete mixer, it has good mixing quality and high efficiency.
l The batching machine adopts PLD1600it is measuring nicety and high produce efficiency.
l The cement is store in cement silo and feeding by screw conveyor.
