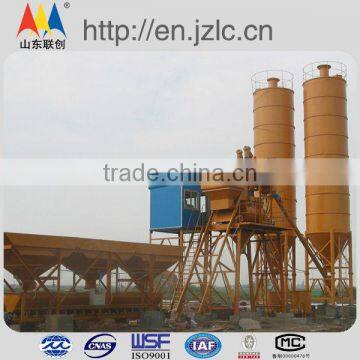

HZS50 cement concrete mix plant
- qingdao
- T/T
You May Like
Product Details
| Condition | New | Place of Origin | Shandong, China | |
| Brand Name | shandong lianchuang | Model Number | hzs50 | |
| Power(W) | 60kw | Weight | 18000kg | |
| Certification | ISO | Warranty | 1 year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
1.Certificate: ISO9000&CE2.Capacity: 50m3/h
3.PC Control
4.Doubule horizonal mixer
1. the concrete mixing plant has intellectually automatic function;
2. it is intermittent and compulsory concrete batching plant;
3. it has the function of maginificient outside.high productivity
4.it can be used in many manners of combining and material conveyance;
5.it can produce dry-rigid,half dry-rigid, plastic and each distribution ratio concrete.
6.it is the ideal equipment for construction of large and medium-sized construction project such as waterpower engineering, highway,port and manufacturers of large fabricated parts and commodity concrete.
| Model | HZS25 | HZS40 | HZS50 | HZS75 |
| Max.Productivity (m3/h) | 25 | 40 | 50 | 75 |
| Mixer | JS500 | JS750 | JS100 | JS1500 |
| Stroage bucket capacity(m3) | 3*3 | 3*4 | 3*7 | 3*8(12) |
| Max.Diameter size of Aggregate (mm) | 60/80 | 60/80 | 60/80 | 60/80 |
| Discharge Height(m) | 1.7-3.8 | 1.7-3.8 | 1.7-3.8 | 1.7-3.8 |
| Charge Height(m) | 2.7 | 2.7 | 2.9 | 2.9 |
| Aggregate measuring accuracy(%) | ± 2 | ± 2 | ± 2 | ± 2 |
| Cement measuring accuracy(%) | ± 1 | ± 1 | ± 1 | ± 1 |
| Fly ash measuring accuracy(%) | ± 1 | ± 1 | ± 1 | ± 1 |
| Water measuring accuracy(%) | ± 1 | ± 1 | ± 1 | ± 1 |
| Additive measuring caauracy(%) | ± 1 | ± 1 | ± 1 | ± 1 |
| Total power(kW) | 34 | 50 | 60 | 85 |
| Total weight(kg) | 14000 | 18000 | 25000 | 35000 |
1.Spare parts will be delivered as you need.
2.Engineers will go to clients’ site for guiding the installation and test-running;
3.Warranty period: 12 months since the installation and commisioning;
4.Service team will follow every placed order regularly till warranty period finished.
