HLS180 mix concrete batching plant
- 5 Set / Sets per Month
- FOB Qingdao
- T/T
You May Like
Product Details
| Condition | New | Power Type | Electric | |
| Place of Origin | Shandong, China | Brand Name | shandong lianchuang | |
| Model Number | hls180 | Power(W) | 198kw | |
| Weight | 85000kg | Certification | ISO | |
| Warranty | 1 year | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
1.High standard environment protection2.ISO Certificate
3.PLC control system
4.JS double horizonal shaft
| Packaging Detail: | sea worthy packing |
| Delivery Detail: | 20 days after the receipt of depisit |
HLS180 mix concrete batching plant
Technical parameter
Model | HLS60 | HLS90 | HLS120 | HLS180 | HLS200 | |
Production(m³/h) | 60 | 90 | 120 | 180 | 200 | |
Mixer | Type | JS1000 | JS1500 | JS2000 | JS3000 | JS4000 |
Power(Kw) | 2*22 | 2*30 | 2*37 | 2*55 | 2*75 | |
Output(m³) | 1 | 1.5 | 2 | 3 | 4 | |
Grain Size(mm) | ≤60 | ≤80 | ≤120 | ≤150 | ≤150 | |
Batcher | Hopper Capacity(m³) | 13 | 15 | 20 | 25 | 30 |
Hopper Quantily(pc) | 4 | 4 | 4 | 4 | 4 | |
Belt Conveyor Capacity(t/h) | 200 | 300 | 400 | 500 | 600 | |
Weighing Scope And Accuracy | Aggregate(Kg) | 3000±1% | 4000±2% | 5000±2% | 6000±2% | 9000±2% |
Cement(Kg) | 600±1% | 900±1% | 1200±1% | 1800±1% | 2400±1% | |
Aduiterant(Kg) | 300±1% | 400±1% | 600±1% | 800±1% | 1000±1% | |
Water(Kg) | 350±1% | 600±1% | 600±1% | 800±1% | 1000±1% | |
Admixture(Kg) | 30±1% | 30±1% | 50±1% | 50±1% | 50±1% | |
Total Power(kw) | ≈78 | ≈102 | ≈145 | ≈196 | ≈245 | |
Discharge Height(m) | 3.8 | 3.8 | 3.8 | 3.8 | 3.8 | |
Detailed pictures
mixer
sheet cement silo

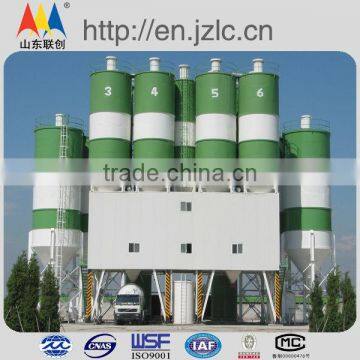

batching plant
discharge parts
