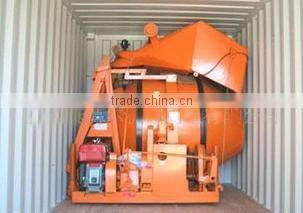

JZR-350-W Diesel Engine Concrete Mixer
US$ 4,000 - 4,500
/ Set
1 Set(Min. Order)
- SHANGHAI / NINGBO PORT
- T/T Credit Card
You May Like
Product Details
| Condition | New | Place of Origin | Zhejiang, China | |
| Brand Name | Wengong | Model Number | JZR350-W | |
| Motor Power | 11.05kw | Mixing Power | 10.3kw | |
| Charging Capacity | 560L | Reclaiming capacity | 350L | |
| Speed of Mixing Drum | 14rpm | Water Supply Mode | Water Pump | |
| Working Cycle Period | <=72s | Discharge Way | Electric | |
| Outline Dimension | 2600 x 2150 x2250mm |
Product Description
Specifications
Diesel Engine Concrete Mixer>Mixer speed:14rpm&diesel engine:16hp
>Low cost,high efficiency
>Export 2000 sets in a month
JZR-350W Diesel Engine Concrete Mixer
Diesel Engine Concrete Mixers have simple structure, easily operation, low cost; it can mix concrete of max diameter 40mm and premixing mortar.
With gravity type,bipyramid and reversal discharging, JZ Series concrete mixer is suitable for mixing plastic, half dry concrete. It has features of reliably drive, light weight, high efficiency.
Technical parameters
| Model | JZR350W (Powered diesel engine) | JZC350 |
| Output capacity(L) | 350 | 350 |
| Inlet capacity(L) | 560 | 560 |
| Production rate (m3/h) | 1--14 | 10--14 |
| Power | 15hp | 5.5kw |
| Rotational speed of mixing drum(RPM) | 14 | 14 |
| Dimension (L×W×H) | 2600×2150×2250 | 2600×2200×2200 |
| Net weight(KG) | 1400 | 1350 |
