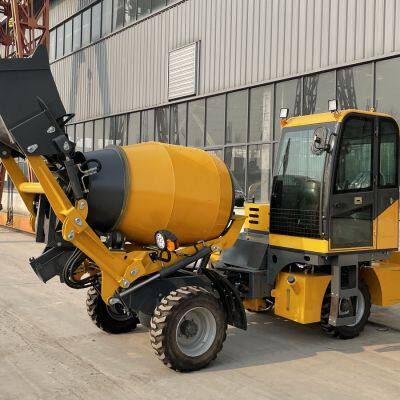

QINGDAO PROMISING 1.2CBM Mini Concrete Mixer Truck

1.2CBM Mini Concrete Mixer Truck

Application:

Concrete mixer trucks, or transit mixers, are used to mix and transport ready-mix concrete from the batch plant to the job site. Wherever concrete is produced and moved, concrete mixer loaders are employed. Our self-loading mixer is rough terrain machine which can be operated by one person. The automatic feeding mixer truck comes with electronic weight batching and has a typical concrete output of 3 CBM/hour.

Features:

42kW 4-cylinder Diesel Engine

Articulated Design realizes smaller turning radius, compact size is more applicable in rural or narrow working sites.

25km/h Driving Speed may fulfill running for a long distance

Enlarged Water Tank facilitates water refilling and flushing the drum.

South Korea Imported and Custom-Designed Key Hydraulic Components improve the softness and stability of the truck, which are more compatible with this model.

Complete Dashboard and Instruments in Cabin enables easy operation of all the tasks such as self-loading, self-unloading, mixing, discharging, and water addition.

4.75mm thick Manganese Plate Drum Body makes it have better wear resistance and longer service life.

The Waterproof Wiring Harness and LED Lamps are used in the whole truck.

French Total Hydraulic Oil is used to ensure the purity of hydraulic oil in the truck and prolong its service life.

Special-shaped Seamless Steel Pipe Riveted and Welded Frame makes it a reasonable design and the truck higher stability.

0.7m3 Concrete Output Drum

Four-Wheel Drive

Technical Specifications:

1. Actual Mixing Volume of Mixing Drum: More than 0.7CBM

2. Residual Volume of Mixing Drum: Less than 0.8%

3. Mixing Drum Concrete Output:  3 CBM/hour, up to 4 batches per hour

4. Mixing Drum Mixing Speed: 3 gears both Forward & Reverse Rotation

5. Engine: 42 kW (57 HP)/2400rpm Four-cylinder, Inline, Water-cooled, Four-stroke YUNNEI YN27 Diesel Engine

6. Drive System Hydraulic Component: Imported from South Korea

7. Gear Shift: 1 Forward, 1 Reverse, 1 High Speed, 1 Low Speed

8. Low Speed: 0-9.5 km/h

9. High Speed: 0-25 km/h

10. Drive Mode: 4-wheel Drive

11. Drive Axle: ISUZU Axle

12. Wheel Base: 2100 mm

13. Hydraulic System: Two Variable Stroke Pumps-Driving Vehicle and Mixer Separately, Two Constant Rate Pumps-Providing power to Drum, Brake and Water System

14. Gearbox: YJ240 Gearbox

15. Cabin: Luxury Cabin

16. Bucket Capacity: 0.2 CBM with Hydraulic Controlled Gate

17. Chute: Hydraulically Controlled Adjustable Chute with 15 degree vertical movement and free horizontal movement

18. Brake: Wet Brake, Parking Brake with Gearbox

19. Tire: 20.5/70-16-14PR Tire

20. Steering: Hydraulic Rear Wheel Steering

21. Battery: 2x 12V/120Ah Battery for Lighting & Ignition

22. Concrete Discharging Angle: 60degree

23. Water Supply Mode of Water Tank: Hydraulic Drive Water Pump

24. Operating Weight: 3500 kg

25. Overall Dimension (L x W x H): 3800 x 1680 x 2500mm

Note:

1. The technical specifications are for standard models only.

2. Other optional accessories and requirements are available upon request.

3. All photos are for reference only. Machines shown may include optional parts.

4. All specifications and design characteristics are subject to change without prior notice.
