Home > Products > Concrete mixer drum > 1.25m3 Hydraulic Concrete Mixer Drum
1.25m3 Hydraulic Concrete Mixer Drum
- SHANGHAI/NINGBO PORT
 - T/T Credit Card

You May Like
Product Details
| Condition | New | Place of Origin | Zhejiang, China | |
| Brand Name | WenGong | Model Number | JCY-1.25 | |
| Motor Power | no | Mixing Power | no | |
| Charging Capacity | 1.25m3 | Reclaiming capacity | 1.25m3 | |
| Speed of Mixing Drum | 0-12m/min | Water Supply Mode | auto | |
| Working Cycle Period | 5mins | Discharge Way | auto | |
| Outline Dimension | 19.50cbm | After-sales Service Provided | Overseas third-party support available |
Product Description
Specifications
hydraulic concrete mixer drum>drum:1.25m3,install hydraulic system
>oil pump:50ml/r;motor pump:160ml/r
>water tank:140L

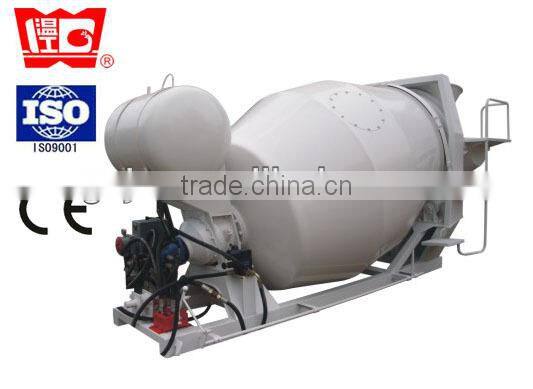

1.25m3 Hydraulic concrete mixer drum
JCY hydraulic driven concrete mixer drum has two kinds of power source: get power directly from truck chassis and power from gearbox. And it's equipped additional internal combustion engine or motor etc as hydraulic power with various types for selection.
The larger than 8m ³ mixer drum configures the high quality of international famous hydraulic driven system, and the smaller-capacity mixer drum adopts top high quality hydraulic control components manufactured in China.
Technical parameters
| Model | JCY-1.25 |
| Mixing Volume (m3) | 1.25 |
| Geometric Volume of Drum (m3) | 2.5 |
| Speed of Agitator(r/min) | 0-12 |
| Leaning Angle | 16° |
| System Rated Pressure(Mpa) | 18 |
| Feeding Height (m) | 1.78 |
| Discharge Height (m) | 0.5 |
| Hydraulic oil pump output (ml/r) | 50 |
| Hydraulic motor output (ml/r) | 160 |
| Oil tank capacity(L) | 18 |
| Radiator | self-controlled, voltage:DC12V or 24V |
| Water tank capacity(L) | 140L |
| Hand-directional valve | Pressure:18Mpa, Flow:120L/min |
| Speed ratio of planet gear hard gear reducer | 45 |
| Motor | Rated pressure:18Mpa, Folw:100L/min |
| Oil pump | Rated pressure :18Mpa, Flow:100L/min, Max speed: 3000r/min  |
| Net weight (kg) | 1500 |
| Dimensions (mm) | 3420×1600×1780 |

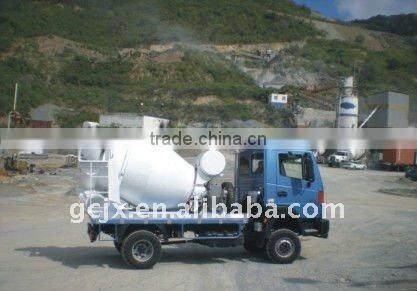

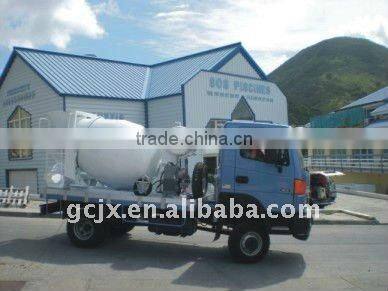

1.  1.25 m3 hydraulic conrete mixer drum have worked for 5years in France
2. JCY-1.25 hydraulic system as below details shown:
