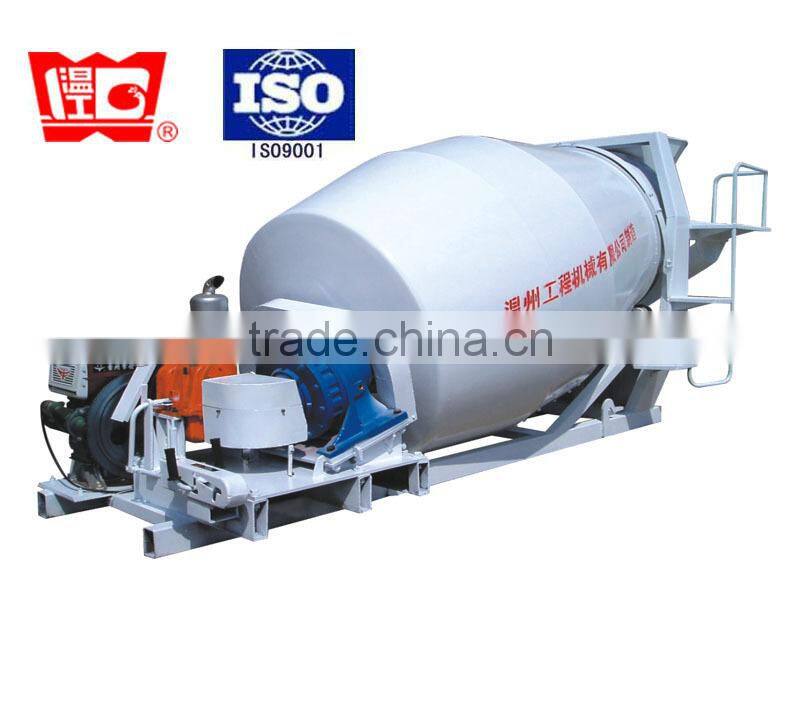

3CBM Diesel Engine Concrete Agitator Drum
US$ 5,000 - 6,800
/ Set
1 Set(Min. Order)
- SHANGHAI/NINGBO PORT
- T/T Credit Card
You May Like
Product Details
| Condition | New | Place of Origin | Zhejiang, China | |
| Brand Name | WenGong | Model Number | JCR-3 | |
| Motor Power | diesel engine:16.2KW | Mixing Power | 16.2 KW | |
| Charging Capacity | 3.3KW | Reclaiming capacity | 3.3KW | |
| Speed of Mixing Drum | 5 r/min~10r/min | Water Supply Mode | manual | |
| Working Cycle Period | 3mins | Discharge Way | auto | |
| Outline Dimension | 4.5mx2.0mx2.0m | After-sales Service Provided | Overseas third-party support available |
Product Description
Specifications
concrete agitator drumncrete mixing drum:3m3
2.independent diesel engine:16.22kw
3.adopt the mechanic chain driven
3 cubic meters concrete agitator drum
3m3 Diesel engine concrete mixing tank, its driven by an independent diesel engine with the mechanical chain drive, which is simple in the structure and easy for installation and operation.
Technical parameters
Agitating and Delivery Volume: m3 | 3 |
Geometric Volume of Drum | 4.88 m3 |
Filling Ratio | 0.68 |
Power of Diesel Engine | 16.2 KW |
Rev of Drum | 5 r/min~10r/min |
Leaning Angle | 16° |
Height of Feeding Inlet | 3.15m |
Height of Discharge Place | 0.8m |
Weight | 2900kg |
Under frame of Complete Machine (length ×width) | 4160x860mm |
Dimensions | 4.5m×2.0m×2.0m |
