Home > Products > Concrete mixer drum > 6m3 Hydraulic concrete mixer tank
6m3 Hydraulic concrete mixer tank
- SHANGHAI/NINGBO PORT
- T/T Credit Card
You May Like
Product Details
| Condition | New | Place of Origin | Zhejiang, China | |
| Brand Name | WenGong | Model Number | JCY-6 | |
| Charging Capacity | 6M3 | Reclaiming capacity | 6M3 | |
| Speed of Mixing Drum | 0-8r/min | Water Supply Mode | auto | |
| Discharge Way | auto | Outline Dimension | 5.78x2.2x2.6m | |
| After-sales Service Provided | Overseas third-party support available |
Product Description
Specifications
Hydraulic Concrete mixer tank>Produce concrete mixer tank over 15years
>pressure:18Mpa, MixVolume:6m3
>exported15 countries

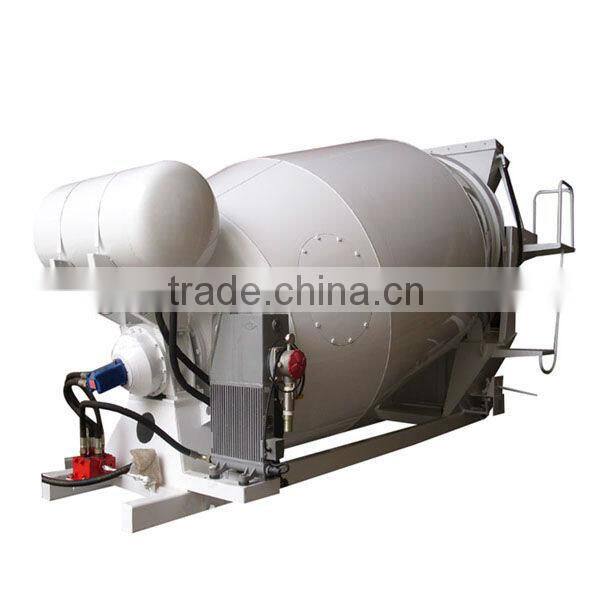

6m3 Hydraulic concrete mixer tank
JCY driven concrete mixer drum adopts high –precision hydraulic components and transformer made in China, USA, German, Italy according to different specification and mixing capacity. It works stability, easy to operate, high efficiency of feeding and discharge, less residual and easy to install. Could ensure stable concrete quality no matter the processing of mixing or delivering, it is the economical and ideal concrete mixing equipment which is widely used in highways, railways, bridges, urban construction,hydropower construction projects mixing plant, continuous delivery in construction site.
JCY hydraulic driven concrete mixer drum has two kinds of power source: get power directly from truck chassis and power from gearbox. And it's equipped additional internal combustion engine or motor etc as hydraulic power with various types for selection.
The larger than 8m ³ mixer drum configures the high quality of international famous hydraulic driven system, and the smaller-capacity mixer drum adopts top high quality hydraulic control components manufactured in China.
6m3 Concrete mixing tank, adopts the hydraulic drive technology and elements leading in China, which is easy for installation, advanced in the structure, economical and practical.
Technical parameters
| Hydraulic Mixing Drum Technical Parameters | Mixing Volume (m3) | 6 | |
| Geometric Volume (m3) | 9.5 | ||
| Speed of Agitator(r/min) | 0-8 | ||
| Leaning Angle | 16° | ||
| System Rated PressureMpa | 18 | ||
| Feeding Height (m) | 3.6 | ||
| Discharge Height | 1.1 | ||
| Hydraulic Oil Pump Output (ml/r) | 63 | ||
| Hydraulic Motor Displacement (ml/r) | 250 | ||
| External Dimensions L*W*H(m) | 5.78×2.2×2.6 | ||
| Net Weight (kg) | 3900 | ||
