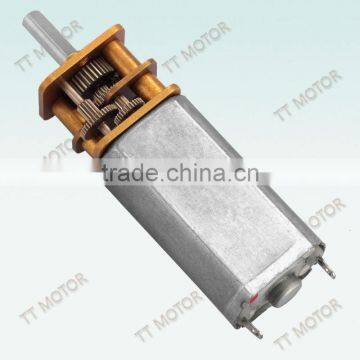

GM13-050 5V dc Gear Motor for Medical Machine
Negotiable
/ Piece
1000 Pieces(Min. Order)
- hong kong
You May Like
Product Details
| Place of Origin | Guangdong, China | Brand Name | TT Motor | |
| Model Number | GM13-050SK | Usage | Boat, Car, Electric Bicycle, Fan, Home Appliance | |
| Certification | ROHS, Other, ROHS, QS9000,TS16949 | Type | Gear Motor | |
| Torque | 2 kg.cm | Commutation | Brush | |
| Speed(RPM) | 50 rpm | Continuous Current(A) | 0.28 A | |
| Output Power | 0.7 w | Voltage(V) | 1.5-12 v |
Product Description
Specifications
Motor, gear motor, dc motor, electric motor, micro motor, electrical motor,power motor,Low Noise,Reliable performance050 Key specifications/special features:
Motor, gear motor, dc motor, electric motor, micro motor, electrical motor,power motor,Low Noise,Reliable performance
Typical application: power lock
Voltage: 2.4V (range: 1.5 to 5.0V)
Gear ratio: 35, 63, 150, 250, 360
At maximum efficiency:
Speed: 52rpm
Torque: 1,600g.cm
Current: 0.1 to 0.29A
| MODEL | VOLTAGE | NO LOAD | AT MAXIMUM EFFICIENCY | STALL | |||||||||
| OPERATING RANGE | NOMINAL | SPEED | CURRENT | SPEED | CURRENT | TORQUE | OUTPUT | TORQUE | CURRENT | ||||
| V | r/min | A | r/min | A | N.m | Kg.cm | w | N.m | Kg.cm | A | |||
GM13-050SK | 13130-250 | 2.0-4.0 | 4.0 | 30 | 0.100 | 24 | 0.29 | 0.147 | 1.50 | 0.39 | 0.588 | 6.00 | 0.90 |
| 13130-150 | 2.0-4.0 | 4.0 | 50 | 0.100 | 40 | 0.29 | 0.088 | 0.90 | 0.39 | 0.392 | 4.00 | 0.90 | |
| 11170-250 | 1.5-9.0 | 7.0 | 40 | 0.095 | 33 | 0.28 | 0.196 | 2.00 | 0.73 | 0.490 | 5.00 | 0.90 | |
| 11170-150 | 1.5-9.0 | 7.0 | 66 | 0.095 | 52 | 0.28 | 0.128 | 1.30 | 0.73 | 0.392 | 4.00 | 0.90 | |
| 09250-250 | 5.0-11.5 | 8.0 | 31 | 0.060 | 25 | 0.20 | 0.156 | 1.60 | 0.44 | 0.637 | 6.50 | 0.50 | |
| 09250-150 | 5.0-11.5 | 8.0 | 52 | 0.060 | 40 | 0.20 | 0.980 | 1.00 | 0.44 | 0.392 | 4.00 | 0.50 | |
