Home > Products > Communication motor > 5v mini dc gear motor for hunting machine

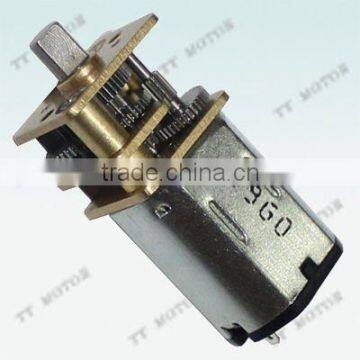

5v mini dc gear motor for hunting machine
Negotiable
/ Piece
100 Pieces(Min.Order)
- HK
You May Like
-
GM13-030PA 5v gear motor for electric lock and hunting machine
-
5v dc gear motor for electric lock
-
GM13-030VA 5v dc motor for electic lock
-
Low rpm high torque DC Gear Motor with Metal gear box of M3 or M4 screw-thread
-
GM12-N20VA 12mm dc linear actuator motor long shraft
-
low noise micro n20 gear motor
Product Details
| Place of Origin | Guangdong, China | Brand Name | TT Motor | |
| Model Number | GM12-N20VA |
Product Description
Specifications
12v gear motor,GM12-N20VA1.Rated Voltage:1.5-12V
2.Speed:10-2000RPM
3.Can be equipped with encoder
4.widely used in robot
12v gear motor,GM12-N20VA:
1.Widely used in robot,lock,Auto shutter,USB fan,Slot machine,Money detector,
1.Widely used in robot,lock,Auto shutter,USB fan,Slot machine,Money detector,
-----Coin refund devices,Currency count machine, Towel dispensers,
-----Automatic doors,Peritoneal machine,Automatic TV rack,
-----Office equipemt ,Household appliances,Automatic
2.electric motor,Low noise,low current and no spark
3.Reduction Ratio:1/3,1/50,1/100,1/298,1/300,1/1000
4.size:12.0*24.0*10.0mm,just 24mm length micro motor
5.We can offer the samples first ,the MOQ is 100 pieces ,and the delivery time is 15-20 days.
MODEL | VOLTAGE | NO LOAD | AT LOAD | STALL | |||||||||
OPERATING RANGE | NOMINAL | SPEED | CURRENT | SPEED | CURRENT | TORQUE | OUTPUT | TORQUE | CURRENT | ||||
V | rpm | A | rpm | A | N.m | Kg.cm | w | N.m | Kg.cm | A | |||
GM12-N20VA | 13110-50 | 1.5-3.0 | 2.4 | 285 | 0.075 | 200 | 0.20 | 0.01 | 0.10 | 0.34 | 0.038 | 0.39 | 1.2 |
13110-100 | 1.5-3.0 | 2.4 | 145 | 0.075 | 100 | 0.20 | 0.02 | 0.20 | 0.34 | 0.076 | 0.78 | 1.2 | |
13110-298 | 1.5-3.0 | 2.4 | 50 | 0.075 | 35 | 0.20 | 0.04 | 0.40 | 0.34 | 0.200 | 2.10 | 1.2 | |
09220-50 | 2.0-5.0 | 5.0 | 285 | 0.040 | 200 | 0.15 | 0.01 | 0.10 | 0.30 | 0.038 | 0.39 | 0.95 | |
09220-100 | 2.0-5.0 | 5.0 | 145 | 0.040 | 100 | 0.15 | 0.02 | 0.20 | 0.30 | 0.076 | 0.78 | 0.95 | |
09220-298 | 2.0-5.0 | 5.0 | 50 | 0.040 | 35 | 0.15 | 0.04 | 0.40 | 0.30 | 0.200 | 2.10 | 1.10 | |
09220-1000 | 2.0-8.0 | 6.0 | 10 | 0.020 | 8.0 | 0.055 | 0.21 | 2.10 | 0.25 | 0.680 | 6.85 | 1.12 | |
