Home > Products > Communication motor > GM12-N20VA DC GEAR MOTOR FOR HUNTER MACHINE

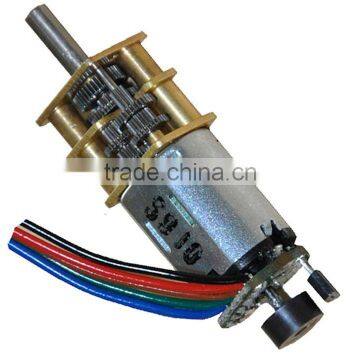

GM12-N20VA DC GEAR MOTOR FOR HUNTER MACHINE
Negotiable
/ Piece
1000 Pieces(Min.Order)
- HK
You May Like
Product Details
| Place of Origin | Guangdong, China | Brand Name | TT MOTOR | |
| Model Number | GM12-N20VA |
Product Description
Specifications
gear motor:GM12-N20VA is widely used at Power Lock Electronic lock, Optic equipment, Medical apparatusgear motor:Reduction Ratio:1/3,1/5,1/10,1/30,1/50,1/63,1/100,1/150,1/210,1/250,1/298,1/1000
MODEL | VOLTAGE | NO LOAD | AT LOAD | STALL | |||||||||
OPERATING RANGE | NOMINAL | SPEED | CURRENT | SPEED | CURRENT | TORQUE | OUTPUT | TORQUE | CURRENT | ||||
V | rpm | A | rpm | A | N.m | Kg.cm | w | N.m | Kg.cm | A | |||
GM12-N20VA | 13110-50 | 1.5-3.0 | 2.4 | 285 | 0.075 | 200 | 0.20 | 0.01 | 0.10 | 0.34 | 0.038 | 0.39 | 1.2 |
13110-100 | 1.5-3.0 | 2.4 | 145 | 0.075 | 100 | 0.20 | 0.02 | 0.20 | 0.34 | 0.076 | 0.78 | 1.2 | |
13110-298 | 1.5-3.0 | 2.4 | 50 | 0.075 | 35 | 0.20 | 0.04 | 0.40 | 0.34 | 0.200 | 2.10 | 1.2 | |
09220-50 | 2.0-5.0 | 5.0 | 285 | 0.040 | 200 | 0.15 | 0.01 | 0.10 | 0.30 | 0.038 | 0.39 | 0.6 | |
09220-100 | 2.0-5.0 | 5.0 | 145 | 0.040 | 100 | 0.15 | 0.02 | 0.20 | 0.30 | 0.076 | 0.78 | 0.6 | |
09220-298 | 2.0-5.0 | 5.0 | 50 | 0.040 | 35 | 0.15 | 0.04 | 0.40 | 0.30 | 0.200 | 2.10 | 0.6 | |
09220-1000 | 2.0-8.0 | 6.0 | 10 | 0.020 | 8.0 | 0.055 | 0.120 | 1.20 | 0.25 | 0.540 | 5.4 | 0.2 | |
