Home > Products > Dc Brushless motor > TEC2419 Electric Hair Drier dc Brushless Motor Micro Motor

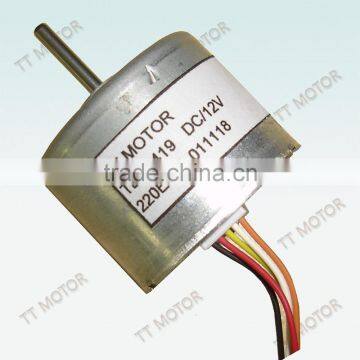

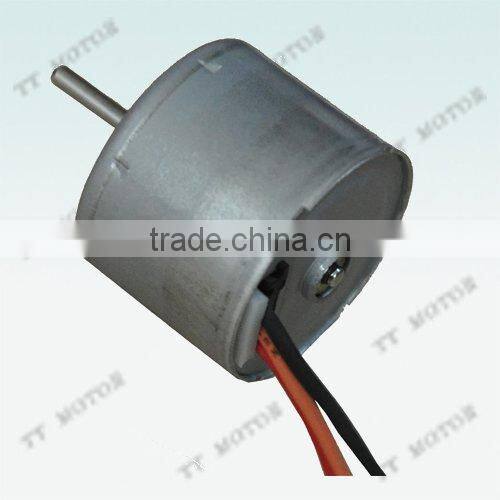

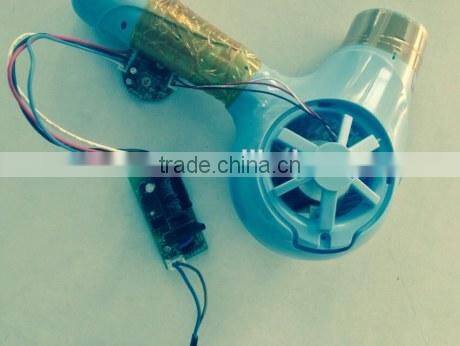

TEC2419 Electric Hair Drier dc Brushless Motor Micro Motor
Negotiable
/ Piece
1000 Pieces(Min. Order)
- shenzhen
You May Like
Product Details
| Place of Origin | Guangdong, China | Brand Name | TT MOTOR | |
| Model Number | TEC2419 | Usage | Fan, Other, Fan, Medical Equipment Air freshener Flow control valves | |
| Certification | ROHS | Type | Other, brushless motor | |
| Torque | 50g.cm | Commutation | Brushless | |
| Speed(RPM) | 6200rpm | Continuous Current(A) | 0.09A | |
| Output Power | 1.5W | Voltage(V) | 12V | |
| Efficiency | Other, 75% |
Product Description
TEC2419 dc brushless planetary motor and 12v brushless motor
1. Applications :Medical Equipment Air freshener Flow control valves Bank Equipment IP Camera Air Compressor Fan Coffee Grinder Machine Air Pump Door lock actuators
2. Description
Over-current protection
Over-voltage protection
Built-in drive
PWM Pulse wide speed range
Clockwise/Counter-clockwise rotation
30000H life time
Number of motor phase:3
MODEL | VOLTAGE | NO LOAD | AT LOAD | STALL | |||||||||
OPERATING RANGE | NOMINAL | SPEED | CURRENT | SPEED | CURRENT | TORQUE | OUTPUT | TORQUE | CURRENT | ||||
V | rpm | A | rpm | A | mN.m | g.cm | w | mN.m | g.cm | A | |||
TEC2419 | 1262 | 8-15 | 12.0 | 6200 | 0.09 | 2750 | 0.375 | 5.0 | 50 | 1.5 | 10.0 | 100.0 | 0.80 |
2488 | 15-26 | 24.0 | 8800 | 0.08 | 4700 | 0.27 | 5.0 | 50 | 3.0 | 15.0 | 150.0 | 0.80 | |
