12v bldc air pump motor

FOB Price

Negotiable / Piece

100 Pieces(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China	Brand Name	TT Motor
Model Number	GMP24-TEC2419	Usage	Car, Home Appliance, Other, Car, Home Appliance, optical equipment
Certification	ROHS, Other, ROHS, QS9000,TS16949,ISO14000	Type	Other, Brushless gear motor
Torque	0.2-5kg.cm	Construction	Permanent Magnet
Commutation	Brushless	Protect Feature	Totally Enclosed
Speed(RPM)	9-350rpm	Continuous Current(A)	0.15-0.18A
Output Power	1-3 W	Voltage(V)	12V 24V

12v bldc air pump motor
1.size:24.0 X 65.0mm
2.Built-in driver
3.Life time: 5000-15000hr
4.Rohs

12v bldc air pump motor

GMP24-TEC2419

Application

Characters

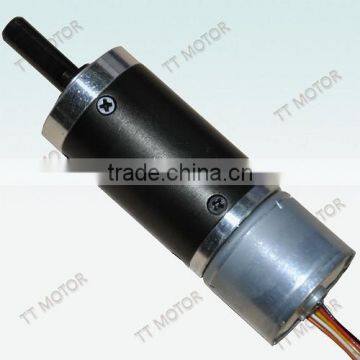

DC Brushless Motor with 24mm planetary gearbox
Voltage: 12V 24V
size:24.0 X 65.0mm, just 65mm length micro motor
Reduction Ratio: : 4,19,27,51,71,100,139,189,264,369,516,720
High torque,Built-in driver
Clockwise/Counter-clockwise rotation
FGSpeed feedback signal
Over-current protection
Over-voltage protection
Under-voltage protection
Samples can be sent first ,the MOQ is 100 pieces ,and the delivery time is 15-20 days.

Parameter and dimension of 12v bldc air pump motor

Gearbox with motor:GMP24-TEC2419-1262-XXX-12V

Reduction ratio	19	27	51	71	100	139	189	264	369	516
Length mm	36	36	42	42	42	42	49	49	49	49
No-load speed rpm	300	210	120	85	60	44	31	22	15	11
Rated speed rpm	250	175	90	65	45	32	24	17	12	9
Rated torque kg.cm	0.2	0.3	0.6	0.8	1.2	1.6	1.8	2.6	3.6	5
entary tolerance torque kg.cm	1	1.5	2.5	3	5	10	10	10	10	10

Gearbox with motor:GMP24-TEC2419-2487-XXX-24V

Reduction ratio	19	27	51	71	100	139	189	264	369	516
Length mm	36	36	42	42	42	42	49	49	49	49
No-load speed rpm	440	310	160	120	85	60	45	32	22	16
Rated speed rpm	350	245	130	90	65	50	35	25	18	13
Rated torque kg.cm	0.2	0.3	0.6	0.8	1.2	1.6	1.8	2.6	3.6	5
entary tolerance torque kg.cm	1	1.5	2.5	3	5	10	10	10	10	10
