57mm Brushless Motor
- HK
- T/T Credit Card
You May Like
Product Details
| Place of Origin | Guangdong, China | Brand Name | TT motor | |
| Model Number | TEC57 |
Product Description
Specifications

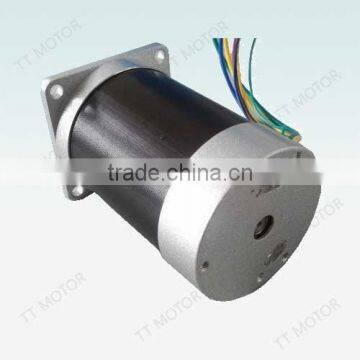

1.57mm Brushless Motor2.High torque
3.Life time 5000H
4.brushless dc motor 24v 500w
57mm Brushless Motor And gearbox
Brushless Motor
57mm Brushless Motor, BLDC Motor
1) CE and RoHS Approved.
2) Quality System: ISO9000
GENERAL SPECIFICATIONS
Winding type | Delta |
Hall effect angle | 120 degree electrical angle |
Shaft run out | 0.025mm |
Radial play | 0.025mm@460g |
End play | 0.025mm@4000g |
Max. radial force | 75N @ 20mm from the flange |
Max. axial force | 15N |
Insulation class | Class B |
Dielectric strength | 500VDC for one minute |
Insulation resistance | 100MΩMin., 500VDC |
| ELECTRICAL SPECIFICATIONS | |||||
| Number of poles | 4 | ||||
| Number of phase | 3 | ||||
| Rated voltage VDC | 36 | ||||
| Rated speed RPM | 4000 | ||||
| Model | FL57BL(S)005 | FL57BL(S)01 | FL57BL(S)02 | FL57BL(S)03 | FL57BL(S)04 |
| Rated torque N.m | 0.055 | 0.11 | 0.22 | 0.32 | 0.43 |
| Rated power W | 23 | 46 | 92 | 133 | 180 |
| Peak torque N.m | 0.16 | 0.39 | 0.7 | 1 | 1.27 |
| Peak current A | 3.5 | 6.8 | 11.5 | 16.5 | 20.5 |
| Line to line resistance ohms | 4.1 | 1.5 | 0.7 | 0.45 | 0.35 |
| Line to line inductance mH | 10 | 4.2 | 2.16 | 1.4 | 1 |
| Torque constant Nm/A | 0.053 | 0.063 | 0.063 | 0.063 | 0.063 |
| Back E.M.F V/KRPM | 5.55 | 6.6 | 6.6 | 6.6 | 6.6 |
| Rotor inertia g.cm2 | 30 | 75 | 119 | 173 | 230 |
| Body length(L) mm | 45 | 55 | 75 | 95 | 115 |
| Mass Kg | 0.25 | 0.5 | 0.75 | 1 | 1.25 |
GMP56G-TEC5798
110v high torque low rpm electric motor
Product features and usage:
fessional production of small diameter,low speed,large torque brushless dc planetary gearbox.
2. 56mm diameter enhanced gearbox and long life gearbox, allowed torque 1.5N.M—15N.M
3.especially fit for small diameter,low noise,large torque,speed control and some free control occasion
4. Can be equipped with brush motor, cost lower.
5. reduction ratio : 3.6 4.3 13 15 18 47 55 65 77 168 198 234 276 326
Brushless motor technical data
Motor Modes | voltage | No load speed | No load current | Rated speed | Rated torque | Output power | Rated current |
VDC | r/min | mA | r/min | kg.cm | W | A | |
TEC5798-2420 | 24 | 2000 | 200 | 1450 | 4.0 | 60 | 4.0 |
TEC5798-2430 | 24 | 3000 | 300 | 2000 | 4.0 | 80 | 6.0 |
TEC5798-2441 | 24 | 4100 | 250 | 3300 | 5.5 | 180 | 9.2 |
brushless gear motor technical data
brushless dc planetary gear motor model:GMP56G-5798-2420(normal keyways shaft diameter 12mm,shaft length28mm)
Reduction ratio | 3.6 | 4.25 | 13 | 15 | 18 | 32 | 47 | 55 | 65 |
Reduction stage number | 1 | 2 | 3 | ||||||
Length of gearbox mm | 34.5 | 34.5 | 45.8 | 45.8 | 45.8 | 45.8 | 57.1 | 57.1 | 57.1 |
No load speed rpm | 556 | 471 | 154 | 133 | 111 | 63 | 43 | 36 | 31 |
Rated speed rpm | 403 | 341 | 112 | 97 | 81 | 45 | 31 | 26 | 22 |
Rated torque N.M | 1.3 | 1.5 | 4.2 | 4.9 | 5.8 | 10 | 14 | 16 | 19 |
Instantly allowed torque N.M | 3 | 3 | 10 | 10 | 10 | 30 | 30 | 30 | 30 |
brushless dc planetary gear motor model:GMP56G-5798-2430-xxx(normal keyways shaft diameter 12mm,shaft length28mm)
Reduction ratio | 3.6 | 4.25 | 13 | 15 | 18 | 32 | 47 | 55 | 65 |
Reduction stage number | 1 | 2 | 3 | ||||||
Length of gearbox mm | 34.5 | 34.5 | 45.8 | 45.8 | 45.8 | 45.8 | 57.1 | 57.1 | 57.1 |
No load speed rpm | 833 | 706 | 231 | 200 | 167 | 94 | 64 | 55 | 46 |
Rated speed rpm | 556 | 471 | 154 | 133 | 111 | 63 | 43 | 36 | 31 |
Rated torque N.M | 1.3 | 1.5 | 4.2 | 4.9 | 5.8 | 10 | 14 | 16 | 19 |
Instantly allowed torque N.M | 3 | 3 | 10 | 10 | 10 | 30 | 30 | 30 | 30 |
