Home > Products > Communication motor > 5v dc Gear Motor for Hunting Machine

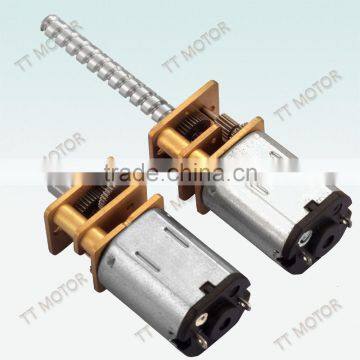

5v dc Gear Motor for Hunting Machine
Negotiable
/ Piece
100 Pieces(Min. Order)
- HK
You May Like
Product Details
| Place of Origin | Guangdong, China | Brand Name | TT MOTOR | |
| Model Number | GM12-N20VA | Usage | Other, Electronic lock,Medical apparatus | |
| Certification | ROHS, Other, ROHS, QS9000,TS16949 | Type | Gear Motor | |
| Torque | max 0.55 N.M | Construction | Permanent Magnet | |
| Commutation | Brush | Protect Feature | Explosion-proof | |
| Speed(RPM) | 10-1000RPM | Continuous Current(A) | 0.04 | |
| Output Power | 0.5 W | Voltage(V) | 1.5-12 V | |
| Efficiency | Other, 70% |
Product Description
Specifications
12mm dc motor with gear box:GM12-N20 is widely used in
1.Power Lock.Optic equipment.
2.Voltage:3-12V
3.Speed:10-1000RPM
12mm dc motor gear box:
GM12-N20 is widely used in
1.Power Lock.Optic equipment.Medical apparatus
2.Voltage:3-12V
3.Speed:10-1000RPM
4.Low noise,low current no spark
5.Reduction Ratio:1/3,1/5,1/10,1/30,1/50,1/63,1/100,1/150,1/210,1/250,1/298,1/1000
6.size:12.0*24.0*10.0 mm,just 24.0 mm length mini motor
7.We can offer the samples first ,the MOQ is 1000 pieces ,the delivery time is 15-30 days
| Typical Applications | Description |
| Power Lock Electronic lock, Optic equipment, Medical apparatus | 12GF1215 Geared motor reduction ratio: 10 30 50 63 100 150 210 250 298 380 1000 |
| MODEL | VOLTAGE | NO LOAD | AT MAXIMUM EFFICIENCY | STALL | |||||||||
| OPERATING RANGE | NOMINAL | SPEED | CURRENT | SPEED | CURRENT | TORQUE | OUTPUT | TORQUE | CURRENT | ||||
| V | r/min | A | r/min | A | N.m | Kg.cm | w | N.m | Kg.cm | A | |||
GM12-N20VA | 13115-50 | 1.5-3.0 | 2.4 | 310 | 0.20 | 240 | 0.45 | 0.013 | 0.135 | 0.34 | 0.049 | 0.5 | 1.4 |
| 13115-100 | 1.5-3.0 | 2.4 | 152 | 0.16 | 120 | 0.42 | 0.026 | 0.27 | 0.34 | 0.098 | 1.0 | 1.4 | |
| 13115-298 | 1.5-3.0 | 2.4 | 50 | 0.15 | 38 | 0.39 | 0.078 | 0.80 | 0.34 | 0.294 | 3.0 | 1.4 | |
| 08260-50 | 2.0-5.0 | 5.0 | 285 | 0.10 | 218 | 0.24 | 0.012 | 0.13 | 0.30 | 0.039 | 0.4 | 0.6 | |
| 08260-100 | 2.0-5.0 | 5.0 | 145 | 0.10 | 110 | 0.22 | 0.026 | 0.26 | 0.30 | 0.088 | 0.9 | 0.6 | |
| 08260-298 | 2.0-5.0 | 5.0 | 45 | 0.08 | 35 | 0.20 | 0.076 | 0.77 | 0.30 | 0.255 | 2.6 | 0.6 | |
