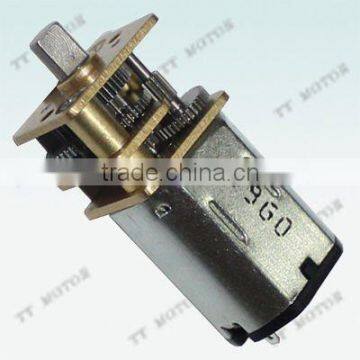

Low Noise Micro N20 Gear Motor
Negotiable
/ Piece
100 Pieces(Min. Order)
- Shenzhen
You May Like
Product Details
| Place of Origin | Guangdong, China | Brand Name | TT MOTOR | |
| Model Number | GM12-N20VA | Usage | Home Appliance | |
| Certification | ROHS | Type | Gear Motor | |
| Torque | 500g.cm | Commutation | Brush | |
| Speed(RPM) | customized speed | Continuous Current(A) | 520.0mA | |
| Output Power | 0.35W | Voltage(V) | 5.0V |
Product Description
Specifications
1.spur metal gear motor2.widely used on door lock,and home applicances
3.small size,but high performance
4.light weight:15g
MODEL:GM12-N20VA
1.voltage range:3.0-12.0V

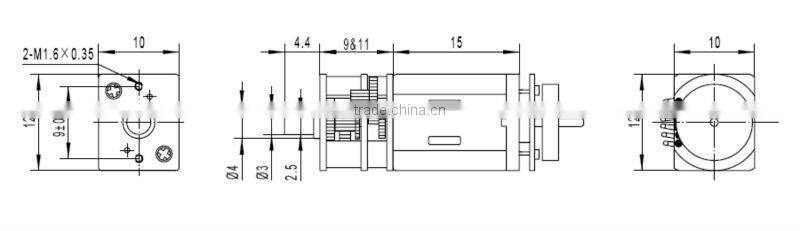

2.size:12.0*24.0mm,12mm diameter,total length is 24mm/26mm
2.5mm D shaft,shaft length can be as customers' needs
3.motor direction:CW & CCW

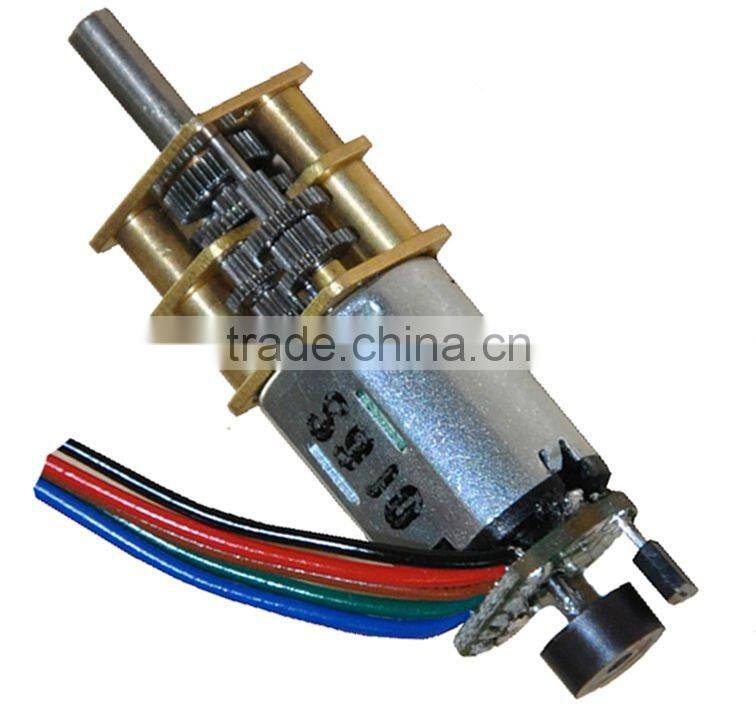

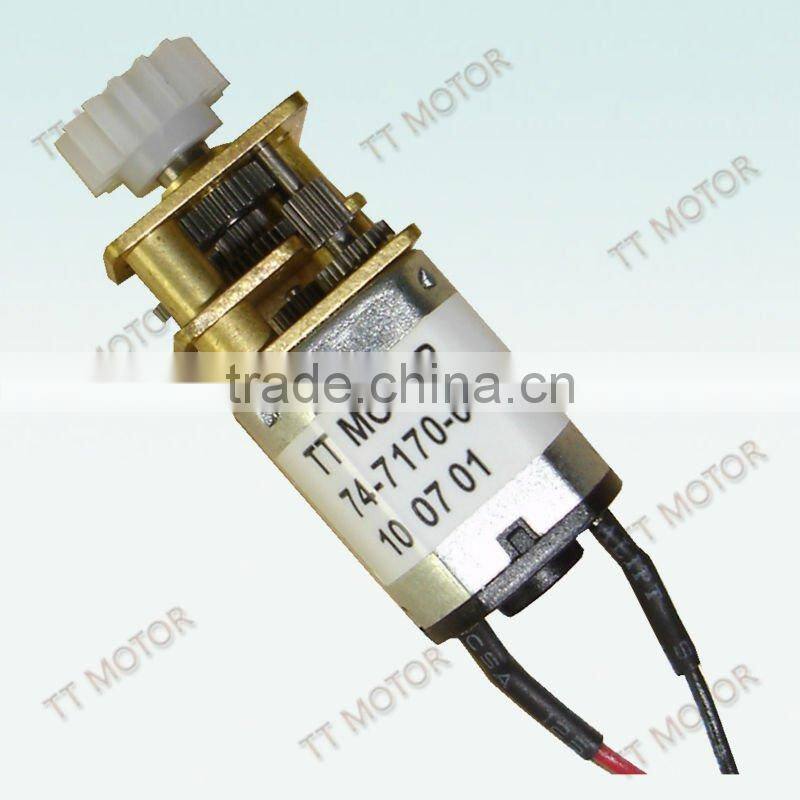

4.can match with pinions,wires,and encoders(3ppr)
5.available reduction ratios:
1/3,1/5,1/10,1/20,1/30,1/50,1/63,1/100,1/150,1/210,1/2501/298,1/380 L=9mm
1/1000 L=11mm
6.weight:15.0g/pcs
7.we can provide samples for your test.
MODEL | VOLTAGE | NO LOAD | AT LOAD | STALL | |||||||||
OPERATING RANGE | NOMINAL | SPEED | CURRENT | SPEED | CURRENT | TORQUE | OUTPUT | TORQUE | CURRENT | ||||
V | rpm | A | rpm | A | N.m | Kg.cm | w | N.m | Kg.cm | A | |||
GM12-N20VA | 13110-50 | 1.5-3.0 | 2.4 | 285 | 0.075 | 240 | 0.20 | 0.007 | 0.07 | 0.31 | 0.038 | 0.39 | 1.2 |
13110-100 | 1.5-3.0 | 2.4 | 145 | 0.075 | 120 | 0.20 | 0.015 | 0.15 | 0.31 | 0.076 | 0.78 | 1.2 | |
13110-298 | 1.5-3.0 | 2.4 | 50 | 0.075 | 40 | 0.20 | 0.045 | 0.45 | 0.31 | 0.200 | 2.10 | 1.2 | |
09220-50 | 2.0-5.0 | 5.0 | 285 | 0.040 | 240 | 0.15 | 0.007 | 0.07 | 0.35 | 0.038 | 0.39 | 0.52 | |
09220-100 | 2.0-5.0 | 5.0 | 145 | 0.040 | 120 | 0.15 | 0.015 | 0.15 | 0.35 | 0.076 | 0.78 | 0.52 | |
09220-298 | 2.0-5.0 | 5.0 | 50 | 0.040 | 40 | 0.15 | 0.045 | 0.45 | 0.35 | 0.200 | 2.10 | 0.52 | |
09220-1000 | 2.0-8.0 | 5.0 | 14 | 0.040 | 12 | 0.15 | 0.100 | 1.00 | 0.35 | 0.300 | 3.00 | 0.52 | |
