Ceramic Intalox Saddle Ring
- SHENZHEN SHANGHAI
- T/T
You May Like
Product Details
| Place of Origin | Jiangxi, China | Type | Ceramic Rings | |
| Application | Industrial Ceramic | Material | Alumina Ceramic | |
| Model Number | Ceramic Intalox Saddle Ring | Brand Name | KANGYU |
Product Description

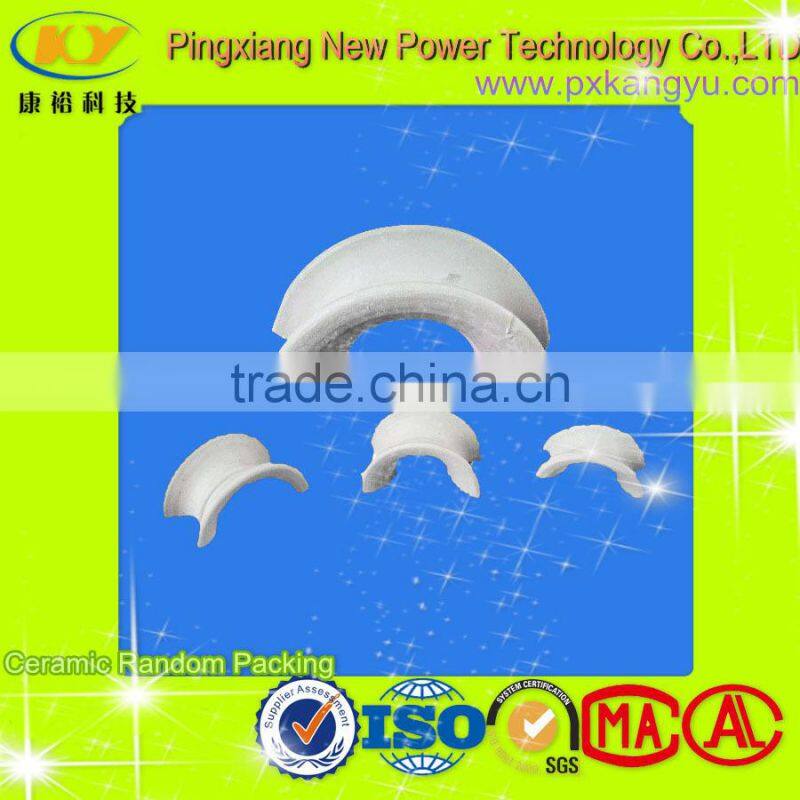

Ceramic Intalox Saddle Ring
Intalox saddle has excellent acid resistance and heat resistance. It can resist to corrosion of various inorganic acids, organic acids and organic solvents except hydrofluoric acid, and can be used in high or low temperature conditions. Consequently the application range is very wide. It can be used in the drying columns, absorbing columns, cooling towers, scrubbing towers and actifier columns in chemical industry, metallurgy industry, coal gas industry, oxygen producing industry, etc.
Chemical composition
SiO2 | Al2O3 | Fe2O3 | CaO | K2O+Na2O |
>70% | 23-30% | <1% | <1-2% | <2-4% |
Physical properties
Index | Value |
Specific gravity(g/cm3) | 2.25-2.35 |
Water absorption(%) | <0.5 |
Acid-resisting strength, %Wt. Loss (ASTMc279) | <4 |
Firing temperature(Degree C) | 1280-1320 |
Softening point(Degree C) | >1400 |
Density(kg/m3) | 2350 |
Technical data
Spec. (inch) | Spec. (mm) | Approx. weight (kg/m3) | Surface area (m²/m³) | Free volume (%) | Packing factor (l/ft) |
1/2 | 12 | 720 | 623 | 71.7 | 200 |
3/4 | 19 | 688 | 334 | 73 | 130 |
1 | 25 | 688 | 253 | 73 | 85 |
1.5 | 38 | 640 | 164 | 75 | 50 |
2 | 50 | 577 | 115 | 77.4 | 37 |
3 | 76 | 623 | 92 | 75.5 | 24 |
Advantage
These saddles are made from chemical porcelain and have excellent resistance to acids except in the case of hydrofluoric acid.
Moisture absorption must less than half a percent.
The porcelains specific gravity is 2.3-2.4g/cm3 and an average heat capacity (between 20 and 500 of 0.22 cal/g.)
XINTAO ceramic saddles softening point is 1400 min. And they show good thermal shock resistance during repeated cycling between 20 and 820 .
Thermal shock test for Intalox Saddles
For example shipping the saddles over 80 M3:
1) Randomly pick 100-200 pieces of ceramic saddles for RTOs from the batch or shipment
2) For each sample selected, heat it up to 820 and maintain them at this temperature for 30 minutes.
3) Drop the hot pieces into cold 20 water
4) Repeat steps 2 & 3 for10 times on each and every piece in the sample lot.
5) Examine the pieces and count the percent that show clear signs of breakage and/or cracking. Our standard is less than seven (7%) percent.

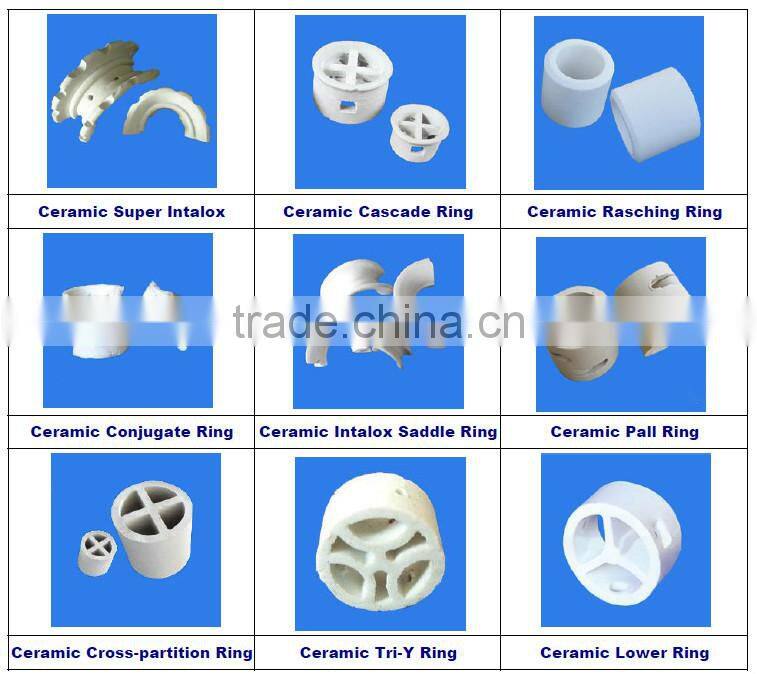

Ceramic packing has excellent acid resistance and heat resistance. It can resist to corrosion of various inorganic acids, organic acids and organic solvents except hydrofluoric acid, and can be used in high or low temperature conditions. Consequently the application range is very wide. The packing can be used in the drying columns, absorbing columns, cooling towers, scrubbing towers and actifier columns in chemical industry, metallurgy industry, coal gas industry, oxygen producing industry, etc.KANGYU ceramic tower packing include ceramic Raschig ring, ceramic Cross-Partition ring, ceramic Pall ring, ceramic Cascade Mini ring, ceramic Saddle, ceramic Saddle RTO, ceramic Super Saddle, etc.
Chemical composition
SiO2 | Al2O3 | SiO2+Al2O3 | Fe2O3 | CaO | MgO | K2O+Na2O | Other |
>69% | 15-23% | >92% | <1% | <0.25% | <0.2% | 2-4% | <1% |
Physical properties
Index | Value |
Porosity(Vol%) | 1 |
Specific heat(KJ/Kg) | 840-900 |
Crush strength(N/mm2) | 390-420 |
Specific gravity(g/cm3) | 2.3-2.45 |
Acid resistance(%) | 99.98 |
Firing temperature(℃) | 1280 – 1320 |
Softening temperature(℃) | >1400 |
Density(Kg/m3) | 2300 – 2400 |
Water absorption(%) | <0.2 |
Thermal expansion(10-6mm/mm℃) | 4.7 |
Moh’s hardness(Scale) | 7 – 8 |
Comprehensive strength(Newtons) | 5600 |
Shock strength(Kgf.cm/cm2) | 1.0 – 1.5 |
(We can also be designed and manufactured to meet the need of specific applications.)
Q: What is your MOQ?
A: Our product MOQ is 1000kg&1m³
Q: What is the delievery time?
A: It takes aroud 10-15days for one 20" container.
Q: What is the shipping port?
A: Shanghai,Shenzhen,Qingdao.
Q: What is payment terms?
A: T/T,L/C, West Union.
Q: What information should I offer to you if I want to know the price?
A: Appication/usage,Size,Material,Quantity,Package term,Delievery time,Payment term,Destination.
Q: What is your warranty?
A: By National Standard GBT 10504-2008, Offer lifetime consultation on problems occurred.
We promise to reply you in 24hours, OEM & ODM service for your unique idea with absolute convenience. We value our business credit, promise to keep your company information confidential.If any inquiry or problem.Please feel free to contact with me.
Grace Zhang
Whatsapp/TEL:008613767885030
QQ: 84781705
Skype: yakegrace
Wechat: xz9426
TM: cn1000900349
Why choose products from KANGYU ?
1. Specialize in this field for more than 10 years.
2. More than 1000 workers, Strong ability of production.
3. Shorter delivery time.
4. Rich variety of products:molecular sieve,random and structured chemical packing in ceramic,plastic&metal honeycomb ceramics,inert ceramic balls,activated alumina,alumina grinding balls,expanded perlite,porous ceramic filter pipe and so on.
5. Competitive price,modern appearance.
6. Do any sticker you need(OEM,ODM).
7. Going green and environmental protection:No mercury, No radition, No UV.
8. Honesty is the most important
We Specialized in Manufacturing molecular sieve, random and structured chemical packing in ceramic, plastic & metal, honeycomb ceramics, inert ceramic balls, activated alumina, alumina grinding balls, etc.

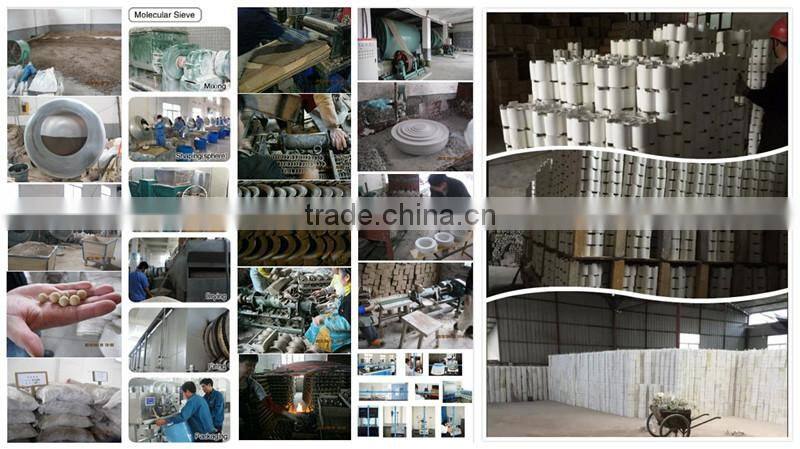

We has an annual manufacturing capacity of 5000 ton molecular sieves, 20000 m3 of varieties types of chemical packings, 3000 m3 of honeycomb ceramics and 5000 m3 of inert ceramic balls, 2000 ton activated alumina etc.
Welcome to our factory and negotiate business. We trust we will be your best supplier in China.
