Good Quality Competitive Price Ceramic Rasching Rings KY56
- SHENZHEN SHANGHAI
- T/T
You May Like
Product Details
| Place of Origin | Jiangxi, China | Type | Ceramic Rings | |
| Application | Industrial Ceramic | Material | Alumina Ceramic | |
| Model Number | Ceramic Rasching Ring | Brand Name | KANGYU |
Product Description

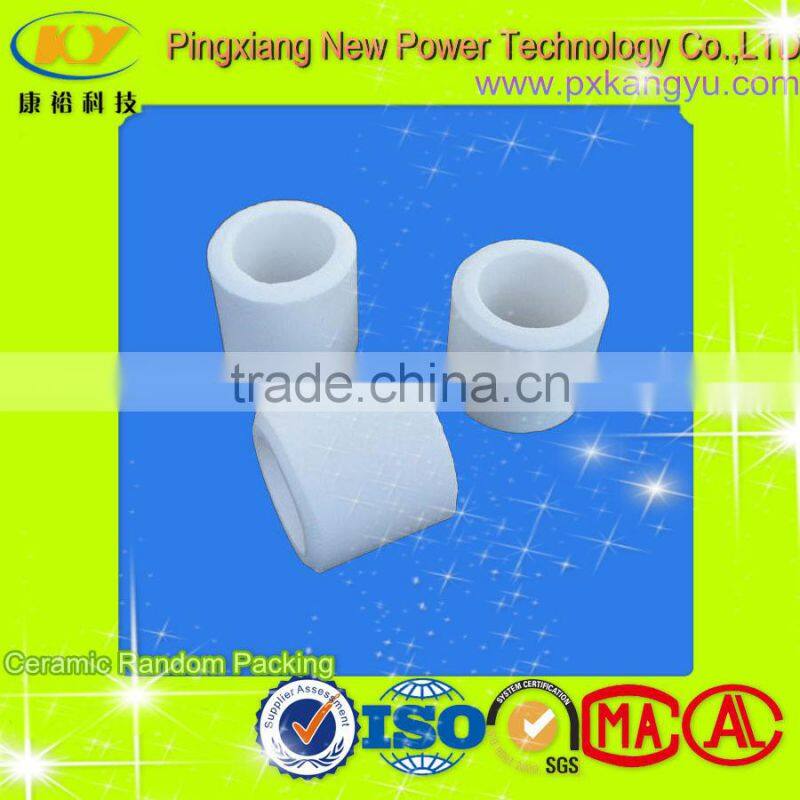

Ceramic Raschig Rings
Introduction
Rasching ring has excellent acid resistance and heat resistance. It can resist to corrosion of various inorganic acids, organic acids and organic solvents except hydrofluoric acid, and can be used in high or low temperature conditions. Consequently the application range is very wide. It can be used in the drying columns, absorbing columns, cooling towers, scrubbing towers and actifier columns in chemical industry, metallurgy industry, coal gas industry, oxygen producing industry, etc.
Technical Data
Spec. | D*H*T (mm) | Surface area (m²/m³) | Free volume (%) | Number per m³ | Bulk density (Kg/m³) | Dry Packing Factor(m-1) |
Ø 15 | 15*15*2 | 330 | 70 | 250000 | 690 | 960 |
Ø 16 | 16*16*2 | 305 | 73 | 192500 | 730 | 784 |
Ø 25 | 25*25*2.5 | 190 | 78 | 49000 | 505 | 400 |
Ø 40 | 40*40*5 | 126 | 75 | 12700 | 577 | 305 |
Ø 50 | 50*50*5 | 93 | 81 | 6000 | 457 | 177 |
Ø 80 | 80*80*9.5 | 90 | 68 | 1910 | 714 | 234 |
Ø 100 | 100*100*10 | 70 | 70 | 1000 | 700 | 172 |
Ø 150 | 150*150*15 | 50 | 68 | 295 | 790 | 142 |
Chemical composition
SiO2 | Al2O3 | Fe2O3 | CaO | K2O+Na2O |
>70% | 23-30% | <1% | <1-2% | <2-4% |
Physical properties
Index | Value |
Specific gravity(g/cm3) | 2.25-2.35 |
Water absorption(%) | <0.5 |
Acid-resisting strength, %Wt. Loss (ASTMc279) | <4 |
Firing temperature(Degree C) | 1280-1320 |
Softening point( Degree C) | >1400 |
Density(kg/m3) | 2350 |

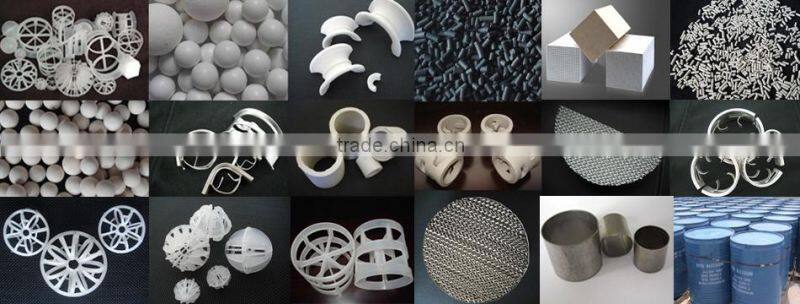

Ceramic packing has excellent acid resistance and heat resistance. It can resist to corrosion of various inorganic acids, organic acids and organic solvents except hydrofluoric acid, and can be used in high or low temperature conditions. Consequently the application range is very wide. The packing can be used in the drying columns, absorbing columns, cooling towers, scrubbing towers and actifier columns in chemical industry, metallurgy industry, coal gas industry, oxygen producing industry, etc.KANGYU ceramic tower packing include ceramic Raschig ring, ceramic Cross-Partition ring, ceramic Pall ring, ceramic Cascade Mini ring, ceramic Saddle, ceramic Saddle RTO, ceramic Super Saddle, etc.
Chemical composition
SiO2 | Al2O3 | SiO2+Al2O3 | Fe2O3 | CaO | MgO | K2O+Na2O | Other |
>69% | 15-23% | >92% | <1% | <0.25% | <0.2% | 2-4% | <1% |
Physical properties
Index | Value |
Porosity(Vol%) | 1 |
Specific heat(KJ/Kg) | 840-900 |
Crush strength(N/mm2) | 390-420 |
Specific gravity(g/cm3) | 2.3-2.45 |
Acid resistance(%) | 99.98 |
Firing temperature(℃) | 1280 – 1320 |
Softening temperature(℃) | >1400 |
Density(Kg/m3) | 2300 – 2400 |
Water absorption(%) | <0.2 |
Thermal expansion(10-6mm/mm℃) | 4.7 |
Moh’s hardness(Scale) | 7 – 8 |
Comprehensive strength(Newtons) | 5600 |
Shock strength(Kgf.cm/cm2) | 1.0 – 1.5 |
(We can also be designed and manufactured to meet the need of specific applications.)
