Ceramic Berl Saddle Ring-Ceramic Tower Packing
- SHENZHEN SHANGHAI
- T/T
You May Like
Product Details
| Place of Origin | Jiangxi, China | Type | Ceramic Balls | |
| Application | Industrial Ceramic | Material | Alumina Ceramic | |
| Model Number | Ceramic Berl saddle ring | Brand Name | KANGYU |
Product Description

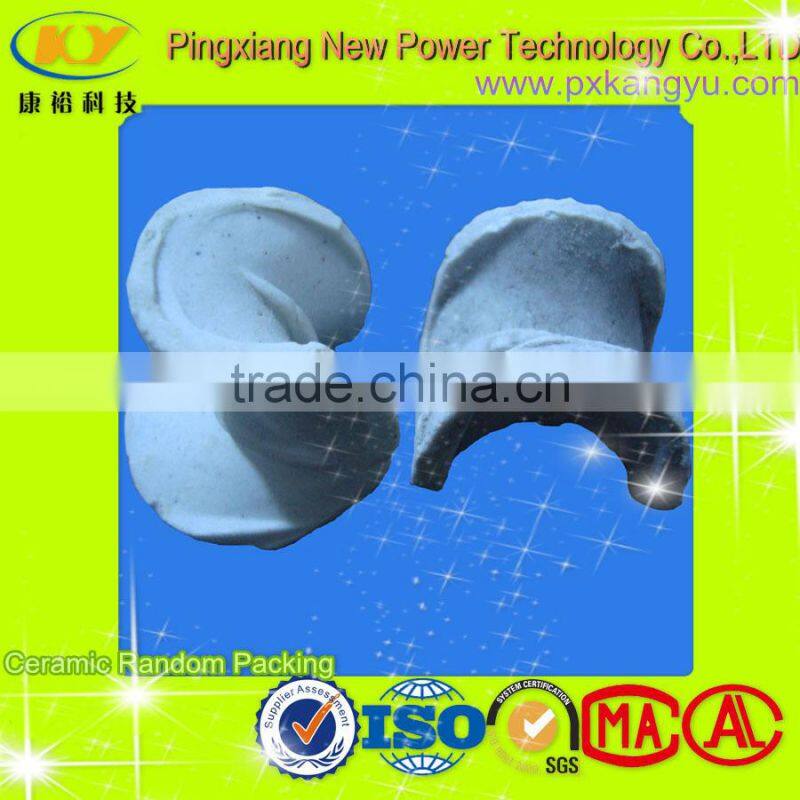

Ceramic Berl saddle Ring-Ceramic Tower Packing
Ceramic packing has excellent acid resistance and heat resistance. It can resist to corrosion of various inorganic acids, organic acids and organic solvents except hydrofluoric acid, and can be used in high or low temperature conditions. Consequently the application range is very wide. The packing can be used in the drying columns, absorbing columns, cooling towers, scrubbing towers and actifier columns in chemical industry, metallurgy industry, coal gas industry, oxygen producing industry, etc.
KANGYU ceramic tower packing include ceramic Raschig ring, ceramic Cross-Partition ring, ceramic Pall ring, ceramic Cascade Mini ring, ceramic Saddle, ceramic Saddle RTO, ceramic Super Saddle, etc.
Specifications
1. Professional Manufacturer for Ceramic Berl Saddles
2. Size:19mm,25mm,38mm,50mm,76mm
3. ISO9001:2008
Ceramic Berl Saddles is a kind of older generation packing just like the raschig ring . The Berl Saddles’s internal and external surfaces are open entirely. Ceramic Berl Saddle Rings have excellent acid resistance and heat resistance. As it’s made of ceramic , ZhongXing Ceramic Berl Saddles can resist various inorganic acids, and organic acids and organic solvents except hydrofluoric acid’s corrosion.
Compared to the rasching ring , Ceramic Berl Saddle’s pressure to the column is lower.And Berl saddles are often superposed each other while they are stacked in the column. It often causes decrease of accumulation voidage. So Berl Saddles tower packing can be used in fertilizer, gas, chemical, petrochemical and environmental protection industries.
product name:
Ceramic Berl Saddles Ring
Ceramic Berl Saddles product model:
19mm, 25mm ,38mm,50mm
product manufacturer:
PingXiang ZhongXing Chemical Packing CO.,LTD
Specifications of Ceramic Berl Saddles:
Size | Specific Surface | Void Volume | Number per m3 | Bulk Density | |
mm | inch | m2/m3 | % | Kg/m3 | |
19 | 3/4 | 225 | 58 | 83950 | 725 |
25 | 1 | 206 | 61 | 43250 | 640 |
38 | 1.5 | 110 | 72 | 12775 | 617 |
50 | 2 | 95 | 72 | 7900 | 650 |
Chemical Composition of Ceramic Berl Saddles:
SiO2 | Al2O3 | Fe2O3 | K2O+Na2O | CaO |
>70% | 17-23% | <1% | 2-3% | <1-2% |
Note:
We can make special ceramic berl saddles’s specifion for customer’s special request.
Ceramic packing has excellent acid resistance and heat resistance. It can resist to corrosion of various inorganic acids, organic acids and organic solvents except hydrofluoric acid, and can be used in high or low temperature conditions. Consequently the application range is very wide. The packing can be used in the drying columns, absorbing columns, cooling towers, scrubbing towers and actifier columns in chemical industry, metallurgy industry, coal gas industry, oxygen producing industry, etc.KANGYU ceramic tower packing include ceramic Raschig ring, ceramic Cross-Partition ring, ceramic Pall ring, ceramic Cascade Mini ring, ceramic Saddle, ceramic Saddle RTO, ceramic Super Saddle, etc.
Chemical composition
SiO2 | Al2O3 | SiO2+Al2O3 | Fe2O3 | CaO | MgO | K2O+Na2O | Other |
>69% | 15-23% | >92% | <1% | <0.25% | <0.2% | 2-4% | <1% |
Physical properties
Index | Value |
Porosity(Vol%) | 1 |
Specific heat(KJ/Kg) | 840-900 |
Crush strength(N/mm2) | 390-420 |
Specific gravity(g/cm3) | 2.3-2.45 |
Acid resistance(%) | 99.98 |
Firing temperature(℃) | 1280 – 1320 |
Softening temperature(℃) | >1400 |
Density(Kg/m3) | 2300 – 2400 |
Water absorption(%) | <0.2 |
Thermal expansion(10-6mm/mm℃) | 4.7 |
Moh’s hardness(Scale) | 7 – 8 |
Comprehensive strength(Newtons) | 5600 |
Shock strength(Kgf.cm/cm2) | 1.0 – 1.5 |
(We can also be designed and manufactured to meet the need of specific applications.)
We promise to reply you in 24hours, OEM & ODM service for your unique idea with absolute convenience. We value our business credit, promise to keep your company information confidential.If any inquiry or problem.Please feel free to contact with me.
Grace Zhang
Whatsapp/TEL:008613767885030
QQ: 84781705
Skype: yakegrace
Wechat: xz9426
TM: cn1000900349
Q: What is your MOQ?
A: Our product MOQ is 1000kg&1m³
Q: What is the delievery time?
A: It takes aroud 10-15days for one 20" container.
Q: What is the shipping port?
A: Shanghai,Shenzhen,Qingdao.
Q: What is payment terms?
A: T/T,L/C, West Union.
Q: What information should I offer to you if I want to know the price?
A: Appication/usage,Size,Material,Quantity,Package term,Delievery time,Payment term,Destination.
Q: What is your warranty?
A: By National Standard GBT 10504-2008, Offer lifetime consultation on problems occurred.
Why choose products from KANGYU ?
1. Specialize in this field for more than 10 years.
2. More than 1000 workers, Strong ability of production.
3. Shorter delivery time.
4. Rich variety of products:molecular sieve,random and structured chemical packing in ceramic,plastic&metal honeycomb ceramics,inert ceramic balls,activated alumina,alumina grinding balls,expanded perlite,porous ceramic filter pipe and so on.
5. Competitive price,modern appearance.
6. Do any sticker you need(OEM,ODM).
7. Going green and environmental protection:No mercury, No radition, No UV.
8. Honesty is the most important
We Specialized in Manufacturing molecular sieve, random and structured chemical packing in ceramic, plastic & metal, honeycomb ceramics, inert ceramic balls, activated alumina, alumina grinding balls, etc.

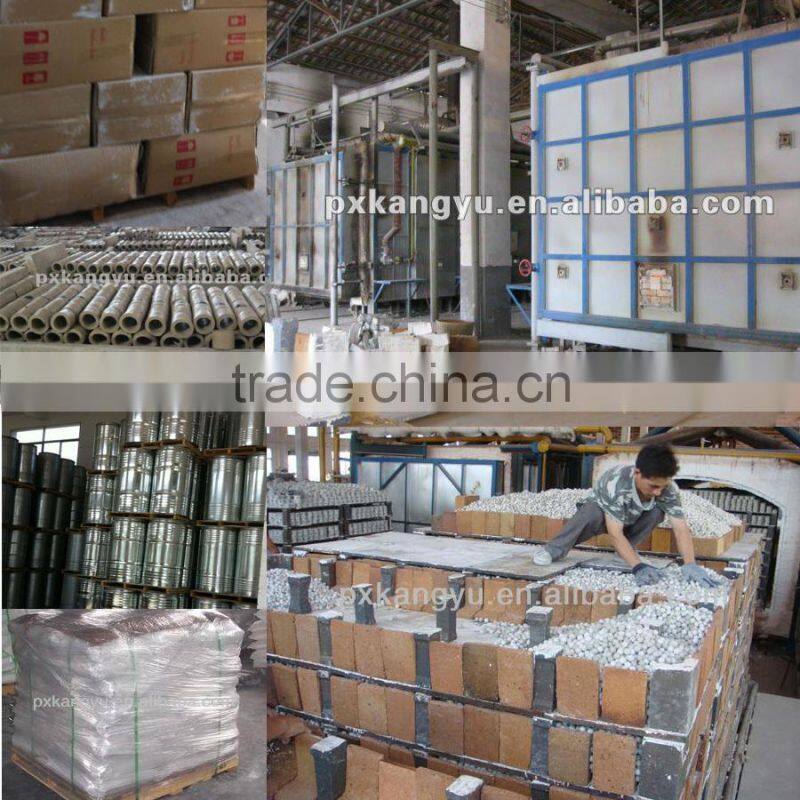

We has an annual manufacturing capacity of 5000 ton molecular sieves, 20000 m3 of varieties types of chemical packings, 3000 m3 of honeycomb ceramics and 5000 m3 of inert ceramic balls, 2000 ton activated alumina etc.
Welcome to our factory and negotiate business. We trust we will be your best supplier in China.
