Ceramic Structure Packing
- SHENZHEN SHANGHAI
- T/T
You May Like
Product Details
| Place of Origin | Jiangxi, China | Type | Ceramic Balls | |
| Application | Industrial Ceramic | Material | Alumina Ceramic | |
| Model Number | Ceramic Structure Packing | Brand Name | KANGYU |
Product Description

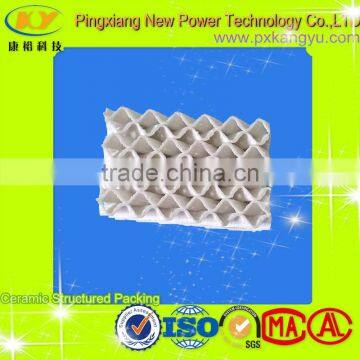

Ceramic Structure Packing
Ceramic Structured Packing consists of many packing units of similar geometric design. Corrugated sheets placed in parallel formcylindrical units called corrugated tower packing. These are a form of highly efficient packing with separating efficiency several times higher than that of loose packing. They have the quality of low-pressure drop, increased operating elasticity, minimum amplifying effect, and maximum liquid treatment compared to loose tower packing.
Chemical composition
SiO2 | Fe2O3 | CaO | Al2O3 | MgO | Other |
≥72% | ≤0.5% | ≤1.0% | ≥23% | ≤1.0% | 2% |
Physical property
Index | Value |
Specific gravity(g/cm3) | 2.5 |
Water absorption(wt%) | ≤0.5 |
Acid resistance(wt%) | ≥99.5 |
Loss in burn(wt%) | ≤5.0 |
Max. operating Temp.(Degree C) | 800 |
Crush strength(Mpa) | ≥130 |
Mohs Hardness(Scale) | ≥7 |
Geometric characteristic
Spec. | Specific Surface (m2/m3) | Bulk Density (kg/m3) | Void Ratio (%) | Pressure drop (mmHg/m) |
250Y | 250 | 420 | 80 | 2 |
350Y | 350 | 470 | 78 | 2.5 |
400Y | 400 | 500 | 75 | 3 |
450Y | 450 | 520 | 72 | 4 |
550Y | 550 | 620 | 74 | 5.5 |
700Y | 700 | 650 | 72 | 6 |
250X | 250 | 380 | 80 | 2.5 |
350X | 350 | 450 | 78 | 3 |
400X | 400 | 480 | 75 | 4 |
450X | 450 | 500 | 72 | 4.5 |
470X | 470 | 440 | 75 | 5 |
550X | 550 | 620 | 74 | 5.5 |
700X | 700 | 650 | 72 | 6 |
Advantage
1) High capacity. New tower design may reduce diameter, while renovate old towers may increase capacity significantly.
2) High separation efficiency. Since it has much larger specific surface area compared to random packing.
3) Low pressure drop, which leads to reduce energy consumption largely.
4) Large flexibility, and scale effect is not obvious.
5) Suitable for all tower diameters.
6) Strong resistance to corrosion of acid and alkali, especially to H2S, naphthenic acid and Cl-
Applications
1) Rectifying organic halide.
2) Rectifying and absorbing some corrosive mixtures, which are definitely regulated in pressure drop and theoretic plate number.
3) Applied in some towers that contain a large quantity of natural media used to absorb nitric acid and concentrated sulfuric acid, as well as for purifying the air in chemical plants.
4) Operating in vacuum conditions at a bottom absolute pressure of 100pa.
5) Used in heat exchanger and demisting, or as a catalyst carrier.
We promise to reply you in 24hours, OEM & ODM service for your unique idea with absolute convenience. We value our business credit, promise to keep your company information confidential.If any inquiry or problem.Please feel free to contact with me.
Grace Zhang
Whatsapp/TEL:008613767885030
QQ: 84781705
Skype: yakegrace
Wechat: xz9426
TM: cn1000900349
Q: What is your MOQ?
A: Our product MOQ is 1000kg&1m³
Q: What is the delievery time?
A: It takes aroud 10-15days for one 20" container.
Q: What is the shipping port?
A: Shanghai,Shenzhen,Qingdao.
Q: What is payment terms?
A: T/T,L/C, West Union.
Q: What information should I offer to you if I want to know the price?
A: Appication/usage,Size,Material,Quantity,Package term,Delievery time,Payment term,Destination.
Q: What is your warranty?
A: By National Standard GBT 10504-2008, Offer lifetime consultation on problems occurred.
