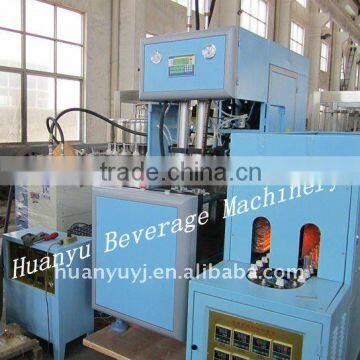

PET Bottle Semi-Automatic Blowing Machine
USD $1,000 - $10,000
/ Set
1 Set(Min.Order)
- 1 Set / Sets per Month
- shanghai port
- T/T
You May Like
Product Details
| Place of Origin | Jiangsu, China | Brand Name | HuangYu | |
| Model Number | HY-B-1 |
Product Description
Specifications
semi-auto blowing machine1.for producing PET
2.PLC: Siemens(German)
3.semi- automatic
Machine peculiarity:
- this machine can blowing 0.-2.0 l PET bottle.
- capacity:1000 pcs/h
- especial air deposited setting
- operation need one person, and don’t need some especial train
- debug and installation is very very easy
- finish product discard as useless ≤2
Main technical parameter
sort | item | unit | Technical data | |
HY-B-1 |
| |||
Blowing machine | capacity | L | 2(2-cavity) 3(1-cavity) |
|
Theory capacity | pcs/h | 450-1000 |
| |
bottle caliber | mm | 15-75 |
| |
Mouding board size | mm | 350*450 |
| |
Allowable thicfness | mm | 120-280 |
| |
Movinr distance | mm | 150 |
| |
Working air pressure | Mpa | <=1.0 |
| |
Blowing air pressure | Mpa | <=4.0 |
| |
Blowing power | KW | 0.2 |
| |
weight | Kg | 800 |
| |
size | mm | 1360*600*1580 |
| |
oven | power | KW | 10 |
|
weight | Kg | 450 |
| |
size | mm | 1450*700*1150 |
| |
