Home > Products > Other machines > DY-MSTC Medium-Size Sitting Type Two-component Road Marking Machine

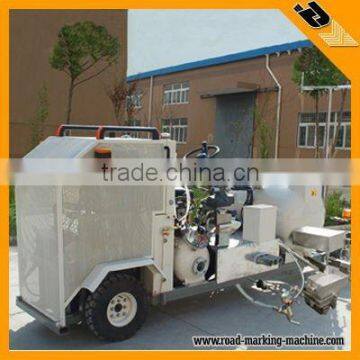

DY-MSTC Medium-Size Sitting Type Two-component Road Marking Machine
- QINGDAO
- T/T
You May Like
-
DY-STC-II Sitting Two Component Road Marking Machine
-
DY-SPTC-I/II Self-Propelled Thermoplastic Convex Marking Machine
-
Sitting Type Thermoplastic Road Marking Machine(Scraping)
-
DY-SPAA Self-propelled Hand-push Air-auxiliary Road Marking Machines
-
DY-HAL-I Hand-push Cold Paint Airless Road Marking Machine
-
DY-RMR Road Marking Remover
Product Details
| Brand Name | DAYU | Model Number | DY-MSTC |
Product Description
Specifications
DY-MSTCI Big Size Sitting Type Two Component Road Marking Machine1.Line Width:100-400mm by marking shoe
2.Paint:Two Component
DY-MSTCI Big Size Sitting Type Two Component Road Marking Machine
1.Line Width:100-400mm by marking shoe
2.Paint:Two Component
Description of DY-MSTC Road Marking Machine
The two-component road marking machinery can be divided into swing structure type, screeding flat-line type and high-pressure airless spraying type according to different paints and different construction shapes.
Different between I , II, III Road Marking Machine
1. Marking shoe I: The upper part is equipped with automatic stirrer filled with paint and hardener.
2. Marking shoe II:
The upper part is equipped with automatic stirrer filled with paint and hardener while the
lower part equipped with acentric shaft with special treatments.
3. Marking shoe III: Equipped with four new-type air-operated spray guns, one hand spray gun with an extension pipe.
Parameter of DY-MSTC Road Marking Machine
No. | Item | Specs |
1 | Engine | Imported 25HP air-cooled electrical starting diesel engine with three-cylinder in line. |
2 | Driving System | Imported oil pressurized continuously variable speed transmission system. |
3 | Driving System | 0-20km/h |
4 | Standard Component (I)
| 100mm and 400mm. |
5 | Standard Component(II)
| 100mm and 400mm. |
6 | Standard Component (III) | 100-1000mm. |
7 | Paint tank | 400L +80L |
8 | Glass beads Bin | 80L |
9 | Lighting and warning function | Equipped highlight light marking the night marking operation more convenient. |
10 | Micro-electronic control system | There are many marking standard control methods in the system. |
11 | Size | 3500 x 1480 x 1650mm |
12 | Weight | 1200kg |
