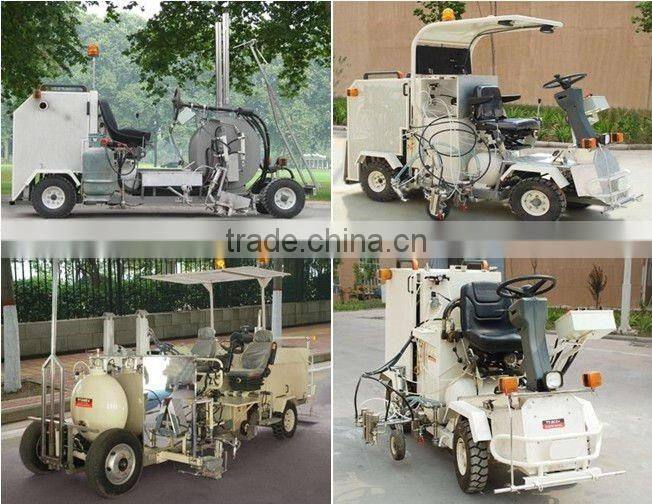

DY-SSAL Small Driving Type Airless Road Marking Machine

DY-SSAL Small Driving Type Airless Road Marking Machine

Performance Description of Small Driving Type Airless Road Marking Machine:

DY-SSAL Small Driving Type Airless Road Marking Machine is the high-tech product. It has the original imported variable speed transmission system with automatic brake device. And it is controlled by micro-electric system, to improve the marking speed and reducing labor intensity.

Technical Data of Small Driving Type Airless Road Marking Machine:

1. Engine: Original imported Japanese Honda 20Hp four-stroke air-cooled gasoline engine, oil tank capacity: 50L
2. Driving speed: 0-22km/h
3. Paint tank: Capacity: 250L
4. Paint pump: Equip with single 20L/min or double 12.5L/min. Max pressure 20Mpa (working pressure10-15Mpa).
5. Air compression: Air discharge: 1m3/min
6. Glass bead spray system: with a window, capacity is 100kg.
7. Spraying width: 100-450mm
8. Weight: 682KG
9. Dimensions: 2550*740*1650mm

Henan Dayu Industry Co.,Ltd. is the professinal road marking machinery manufacturer,our machinery have been all over globe.and demand for road marking machinery ,please feel free to contact with Henan Dayu Industry Co.,Ltd.

Road marking machines have 4 kinds:

I:Thermoplastic Road Marking Machine
II:Cold Solvent Airless Road Marking Machine
III:Cold Solvent Air-auxiliary Road Marking Machine
IV:Two-Component Road Marking Machine
