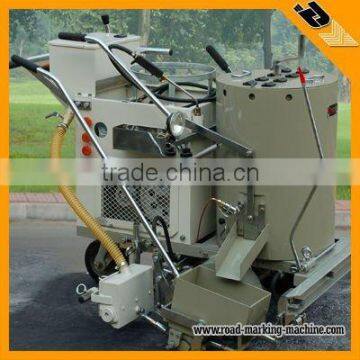

DY-SPT-I Self-Propelled thermoplastic road line marking machine

FOB Price

USD $1 - $2 / Set

1 Set(Min.Order)

Port Qingdao/ Tian jin
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Henan, China		Brand Name	DAYU
Model Number	DY-SPT-I

Product Description

Specifications

DY-SPT-I Self-Propelled thermoplastic road line marking machine
1. Egnine: Gasoline
2. Paint: Thermoplastic
3. Heating: LPG

DY-SPT-I Self-Propelled thermoplastic road line marking machine

1. Egnine: Gasoline
2. Paint: Thermoplastic
3. Heating: LPG

DY-SPT-I/II Self-Propelled Thermoplastic Marking Machine

Description of DY-SPT-I/II Road Marking Machine

DY-SPT not only has the capability of being a hand push marking machine but also has hydraulic pressure drive

equipment by itself that enables increased speed of line construction.

Main Future of DY-SPT-I/II Road Marking Machine

1. HTS Auto-moving the direction of forward or turn over.

2. Special material of marking bucket, heat-resistance, anti-cauterization. hard melt alloy grounded knife,

active design.
3. Same-step sprinkle the bead, convenient construction, adjusted quantity of sprinkle for saving the beads
4. Mult-heating mode for different require.

Technical Parameter of DY-SPT-I/II Road Marking Machine

No.	Item	Spec.
1	Engine	Honda Gasoline Engine(Optional Diesel engine, liquefied gas engine)
2	Marking Shoe=Line Width	100/150/200/300mm (Optional)
3	Paint Tank	65L (Erect type stirring device, Heating and keeping the temperature automatically)
4	Heating Mode	Diesel or gasoline injecting type heater. Save fuel by 50%, Fuel tank: 8L
5	Driving System	HTS variable speed transmission system with automatic brake device
6	Glass Beads Bin	14L, With a window, check the quantity timely
7	Rear Wheel Directional Device	Ensure the machine moving in straight line or turning freely in curved road
8	Size and Weight	135010001100mm 230kg
