Road Marking Machine Test

Specifications

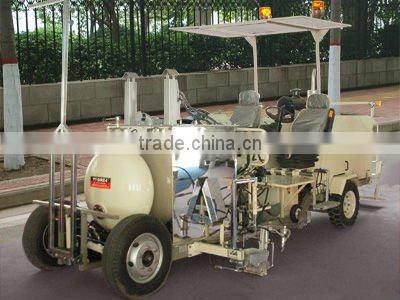

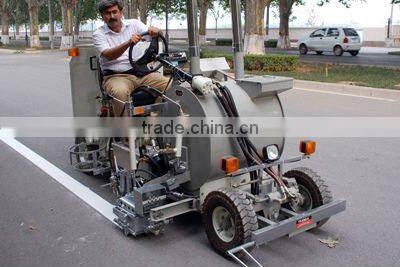

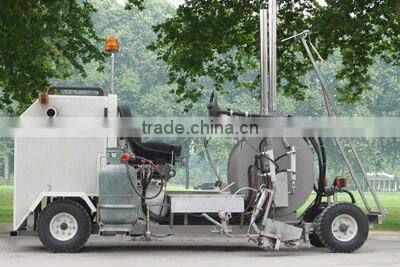

DY-STM  Driving Type Thermoplastic  Road Marking Machine

DY-STM Small-size Driving Type Thermoplastic  Road Marking Machine is a general of screeding type thermoplastic road marking machine,compact and small, flexible to operate. Under the premise of sufficient melted material, it also has relatively high construction efficiency.

Technical Data of DY-STM Small-size Driving Type Thermoplastic  Road Marking Machine:

1. Engine: Janpanese Honda 20HP air-cooled electrical starting single-cylinder gasoline engine. Fuel tank capacity:40L

2. Marking speed: 0-22km/h

3. Marking width:100,150,200,300mm(Optional)

4. Available paint:Thermoplastic paint

5. Marking mode: Screeding

6. Paint tank capacity:160L

7. Driving system: HTS

8. Glass beads bin: 55L

9. Electronic control: Micro-electronic intelligent control

10. Weight: 910kg

11. Size: 3300*1450*2370mm

I:DY-STM-I Small Thermoplastic Road Marking Machine

II:DY-STM-II Small Thermoplastic Convex Road Marking Machine

Related Thermoplastic Road Marking Machines:

1:Big Thermoplastic Spraying Road Marking Machine

2:Big Thermoplastic Extrusion  Road Marking Machine

3:Self-Propelled Thermoplastic (Convex) Road Marking Machine

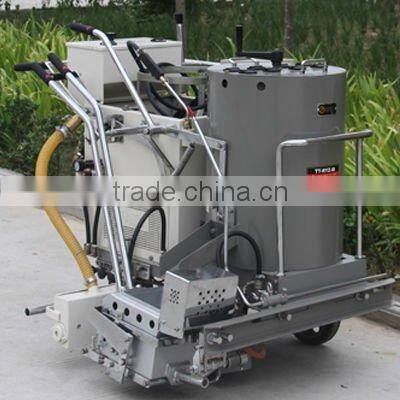

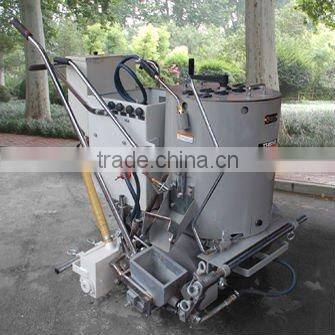

4:Hand-Push Thermoplastic Road Marking Machine

 Zhengzhou Dayu Machinery  Co.,Ltd. is professinal manufacturer for road marking machine, these road marking machines have been all over world,if you have and demand,please feel free to contact with Zhengzhou Dayu Machinery  Co.,Ltd.
