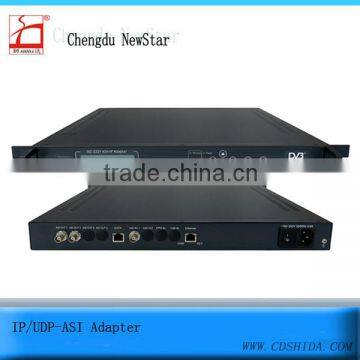

IP to ASI atapter DVB digital TV catv digital headend digital tv headend

FOB Price

USD $1 - $10,000 / Piece

1 Piece(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Sichuan, China		Brand Name	SHIDA
Model Number	SDC-3000G

used for DVB ASI and Ethernet t
maximum receive 12 channel IP and output 12 ASI
transmit the 12 IP stream into 12 TS stream

Product Description

Features

1 Supports IP to ASI one-way conversion

2 Supports double GE ports, and inputs 1Gps data

3 Supports UDP, unicast and multicast mode, and 1GMP V2/V3

4 Supports 12 ASI output channel, and each channel has two ASI ( the same data) interfaces

5The maximum conversion channel of IP to ASI is 12, and the maximum bit-rate in each channel is 96Mbps,

the maximum total bit-rate is 840Mbps

6 Supports to eliminate the IP transport shake, and can correctly restore the PCR of TS stream 7

7 Keyboard and NMS operation

Specifications

Interface	Input	Two 1000M network serial input interfaces,RJ45 interface
Interface	Output	12 ASI output, and each channel has two BNC interfaces
Transfer Protocol	Input	TS over UDP,unicast and multicast
Transfer Protocol	Output	DVB-ASI
Bit-rate		Max of each channel is 96Mbps Max total bit-rate is 840Mbps
General	Dimension(WxLxH)	482mm×410mm×44mm
	Weight	4kg
	Temperature	0~45°C(working ),-20~80°C(storage)
	Power supply	100~240VAC,50/60Hz
	Power consumption	22W
