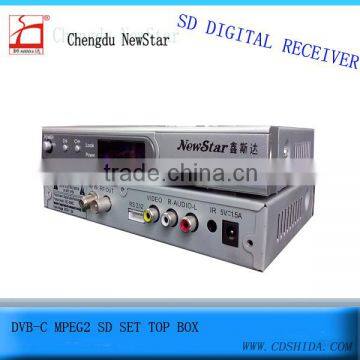

mpeg4 sd digital set top box
- 50000 Piece / Pieces per Month
- shengzheng
- T/T Credit Card
You May Like
Product Details
| Brand Name | SHIDA | Model Number | SDC-3000 |
Product Description
Features :
1 The device meets the DVB standard and supports English and Chinese interfacing as well as multi-condition receiving system,
2 PAL/NTSC auto switching, EPG pre-viewing.
3 Power- off memory function.
4 Contains the Locking functions, LED display.
5 Single voice channel, dual voice channel and stereo channels.
6 Contains a range of games and supports Loader technology.
7 On-line upgrade, on display of advertises and advertise menu.
8 Support broadcasting,email.
9 Support receiving Mosaic effect program.
10 Support 5 ways advertisement ( if choose to use ADS system)
11 Support 1000 channels memory
12 Subtitle available
13 Double AGC control
14 Built in OTP
15 Support MPEG1/2/4,H.264,AVS/AVS+
16 MIPS high speed CPU, main frequency to 400M
17 Support remote online upgrade
18 support AD system
19 Support VBI data input for WSS /Teletext/CC/VPS
Technical Specification
Item | Specs |
Input frequency | 110-862MHz |
input Level | 35dB-85dB |
Input reflecting loss | >8dB |
Input Resistance | 75Ω |
modulation | 16QAM32QAM64QAM128QAM256QAM |
symbol rate | 0-9Mbauds |
bandwidth | 8MHz/7MHz/6MHz |
Decoding mode | MPEG-I MPEG-2 |
Resolution | 720×576(PAL)720×480(NTSC) |
Picture output | 1VP-P 75Ω |
C/N | <26db 64QAM <33dB 256QAM |
Flash | 4 MByte |
RAM | 32MByte |
CA | support
|
Audio decoding | MPEG-1-Audio LayerⅠ/Ⅱ MPEG-2-Audio/MPEG4-Audio /H.264-Audio Mono / stereo Support MP3,AC3,WMA,AAC,DTS audio format |
Audio sampling rate | 32,44.1,48KHz |
PCR jitter adaptive capacity | >500ns,<-500ns |
The channel switching time | < 2.5S |
storable programs | 1000 |
Voltage | 100-250V 50/60Hz |
Power | <10W |
Casing | Metal |
Size | 21.8CM×16.5CM×4.0CM |
Work Temperature | 0-45 centigrade |
RF input RF | F-type, Female |
Loop through Output | IEC male |
AV output | (1 Left Audio, 1 Right Audio, 1 Video) |
RS232 | 1 |
