Home > Products > DVB-C set top box > stable white dvb c stb with CAS

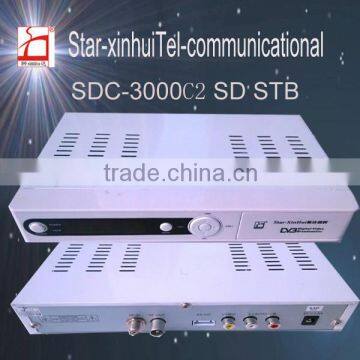

stable white dvb c stb with CAS
- 50000 Piece / Pieces per Month
- shengzhen
- T/T Credit Card
You May Like
Product Details
Brand Name | shida | Model Number | SDC-3000C2 |
Product Description
Technical Specification | |
Item | Specs |
Input frequency | 110-862MHz |
input Level | 35dB-85dB |
Input reflecting loss | >8dB |
Input Resistance | 75Ω |
modulation | 16QAM32QAM64QAM128QAM256QAM |
symbol rate | 0-9Mbauds |
bandwidth | 8MHz/7MHz/6MHz |
Decoding mode | MPEG-I MPEG-2 |
Resolution | 720×576(PAL)720×480(NTSC) |
Picture output | 1VP-P 75Ω |
C/N | <26db 64QAM <33dB 256QAM |
Flash | 4 MByte |
RAM | 32MByte |
CA | support
|
Audio decoding | MPEG-1-Audio LayerⅠ/Ⅱ MPEG-2-Audio Mono / stereo |
Audio sampling rate | 32,44.1,48KHz |
PCR jitter adaptive capacity | >500ns,<-500ns |
The channel switching time | < 2.5S |
storable programs | 1000 |
audio output : |
|
audio distortion degree | < 1.5% |
audio amplitude frequency characteristics | +1/-2 dB 60Hz - 18KHz |
audio signal to noise ratio | > 70dB |
channel about phase difference | less than 5 degree 60Hz - 18KHz |
audio channel about difference of level | < 0.5dB 60Hz ~ 18KHz |
audio channel about crosstalk | < -70dB |
audio video time difference | 90- -185ms |
Voltage | 100-250V 50/60Hz |
Power | <10W |
Casing | Metal |
Size | 21.3CM×14.5CM×3.0CM |
Work Temperature | 0-45 centigrade |
Contact Us
- Chengdu Star-Xinhui Tel-Communicational Co., Ltd.
- Contact nameEva Li Chat Now
- Address89# huahang road , chenghua district , Chengdu, Sichuan
