Product Details

Model Number

SDC-3000S

Product Description

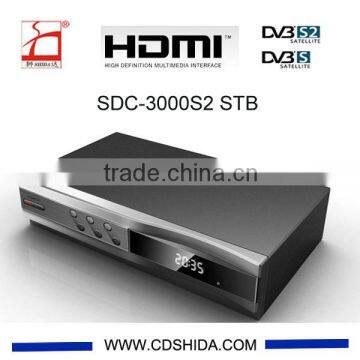

SDC-3000S2 HD FTA SET TOP BOX

Model	DVB S/S2 Receiver
Hardware
CPU	Novatek 78304 Embedded Demodulator
Memory	32X16Mbit DDR2 Frequency1066
Flash	32M bytes
TUNER	AV2018
USB 2.0	Two Host
Front Panel	4-digit LED display on front panel
	red LED Standby,green LED Lock
	Front Panel key(MENU,CH+,CH-,VOL+,VOL-,OK,POWER)Optional
Rear Panel	Tuner RF input connector	IEC60169-2/T-TYPE 75Ohm Unbalanced
	HDMI V1.3
	AV RCA x1
	Coaxial x1
	Power AC90~260V 50Hz/60Hz Adapter output voltage 12V DC/1A
Channel Decoder
Demodulation	Frequency Range	950MHz to 2150MHz
	Sensitivity Level	- 10~ - 81dBm
	Mode IFFT	2k,8k
	Symbol Rate	2 ~ 90MSPS(Code Rate 1/2)
	Code Rate	1/2,2/3,3/4,5/6,7/8 for DVB-S, 1/4,1/3,2/5,1/2,3/5,2/3,3/4,5/6,8/9,9/10 for DVB-S2
	Demodulation	QPSK,8PSK,16APSK
Sortware Features
•Fully comply with DVB-S/S2, MPEG-2/4 H.264 Standard
•Supports NIT Search ,Automatic network search for newly added transponders
•Automatic PAL/NTSC conversion
•SCPC and MCPC receivable from C/Ku band satellite
•DiSEqC1.0/1.1/1.2/USALS Motor fully support, 13/18V DC @ 400mA MAX,Overload Protection, 0/22K
•5000 channels TV and Radio programs
•OSD Multi-language for options(Arabic, Catalan, Czech, Dansk, Deutsch, Eapanol,English,Euskar,Farsi,French,Finnish,Galego,Greek,Hrvatska,Italian,Magyar,Nederlands,Polska,Spanish,Slovakian,Svenska,Portuguese,Russian,Ukrainian,Turkish,Thai and etc.)
•Fully support to 7 days Electronic Program Guide(EPG)
•Picture in Graphics(PIG) support
•256 color/16bit On Screen Display
•Parental control for channels
•Software upgrades through USB port, Support OTA and HTTP/FTP upgrade.
•Subtitle support DVB EN300743 and EBU
•Teletext support DVB ETS300472 by VBI and OSD
•Support FAT/FAT32/NTFS big capacity hard disk
•Games for options (Tetris, Othello, Sudoku.)
•Recording one channel, can view another channel under the same TP.
•Various channel editing function(favorite,move,lock,skip,delete,rename,find,sort)
•USB 2.0 for PVR,TIMESHIFT,media files playback
•Video output resolution:576i; 576P; 720P_50Hz; 1080i_50Hz; 1080P_50Hz
Decoder
Video Decoder	MPEG-2 ISO/IEC 13818-2 MP@ML, H.264(MPEG4 part 10) main and high profile level 4.1/MPEG-2 MP@HL
Audio Decoder	MPEG-1 layer I/II, PCM down mix, IEC958 SPDIF, Dolby 5.1 channel, Dolby down mix 2 channel, Dolby Prologic2 for options
Powerful Multimedia Features
MediaCodec	TS/MPG/MKV/AVI/ASF/FLV/MP4/WMA/WMV/VOB/MOV/DAT/SRT/SUB/BMP/ JPG/JPEG/GIF/PNG/M4A files
Audio Codec	WMA,MP3,AAC (.wma,.mp3,m4a)
Photo Codec	JPEG, BMP, PNG
License
Optional DTS, Dolby Digital, Dolby Digital Plus, RM/RMVB, Divx License.
Accessories
Accessories	gift box
	AV cable optional
	HDMI cable optional
	IR remote control
	User Manual

Packaging & Shipping

Our Services

1). We accept T/T,L/C,WESTUNION

2). We provide professional system design & construction

3). 3 years warranty

4). Lifelong maintenance

5). 24-Hour technical support
