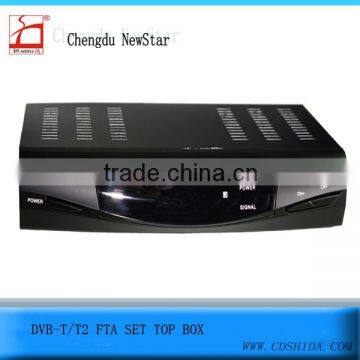

SDC-3000T dvb-t2 decoder
- 50000 Piece / Pieces per Month
- shengzhen
- T/T Credit Card
You May Like
Product Details
| Brand Name | SHIDA | Model Number | SDC-3000T2 |
Product Description
SDC-3000T2 HD SET TOP BOX
Characteristics
1.Video decoder: MPEG-2 MPHL/ MPEG-4/ H.264L4.1, AVC/ MHEG-5 support(Optional)
2.Video decoder: MPEG-2 MPHL/ MPEG-4/ H.264L4.1, AVC/ MHEG-5 support(Optional)
3.Audio decoder: AAC/HE-AAC/AC3,DD+(Optional)/PCM Compliat
4.Full HD and HDMI 1.3/HDCP 1.1 Copy protection
5.DVB Subtiling-ETSI 300473 Compliant, and support VBI/OSD Teletex
6.EPG (Electronic Program Guide) with now & next and 7 days events ready
7.Channel search with automatic/manual scan
8.Parental lock function for menu and selectable per channel
9.Multi-lingual support on screen menu (OSD)
10.Edit functions for TV or Radio programme name
11.Signal strength bar for digital transponders
12.8 Timers for recording and/ or sleep-timer with 3 modes (daily, weekly, once)
13.PVR/ Multimedia Playback/ Software Update via USB
14.Support Logic Channel Number(LCN)
Specification
Tuner |
IF input frequency: VHF: 174MHz - 230MHz/UHF: 474MHz - 866MHz |
Bandwith: 6/7/8MHz |
Input level:-83dBm ~ -5dBm |
Signal input: IEC-type female |
Chipset: MSD7802 |
Mpeg transport stream and A/V decoding |
Video standard: MPEG-2/MPEG-4 AVC/H.264 HP@L4, AVC |
SCART video model CVBS/RGB |
Aspect ratio: 4:3 LB, 4:3 PS, 16:9, AUTO |
Video resolution: 576i, 576p, 720p and 1080i,1080p |
Audio standard: ISO/IEC 14.496-3, AC3(optional), AAC, AAC+ |
Audio mode: mono, dual-channel, stereo |
Demultiplexer |
Standard ISO/IEC 13818-1; ARIB STB-B10 |
Input max. bit stream rate: 120Mbps (serial)/15MBps (parallel) |
Multimedia format: |
Picture: JPEG,BMP,PNG |
Audio:WMA,MP3,AC3,AAC (.wma,.mp3,m4a) |
Video: MPEG1,MPEG2,MPEG4,H264,Motion JPEG (.avi,.mpg,.dat,.vob,.div,.mov,.mkv,) |
Front panel |
Display LED display |
USB slot for software upgrading/PVR/multimedia playback |
|
Channel decoding |
Standard: DVB-T2 |
Demodulation: QPSK, 16QAM, 64QAM |
FEC: 1/2, 2/3, 3/4, 5/6, 7/8, automatic |
Guard: 1/4,1/8,1/16,1/32 |
Mode: 2K, 8K |
Carton size : 0.56m*0.33m*0.44m
Carton content:20 pieces se top box
Carton weight : 18kg
Lifetime software support & In time solution for any problem
