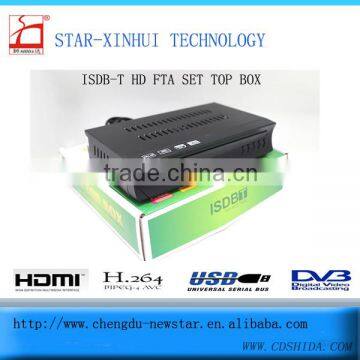

Brazil fta black ISDB-T hd tv box
USD $1 - $20
/ Piece
1 Piece(Min.Order)
- shengzhen
- T/T Credit Card
You May Like
Product Details
| Brand Name | SHIDA | Model Number | SDC-3000M5 |
Product Description
Product Description
| Hardware | ||||
| CPU | MSTAR-MSD7805(128 pin) MIPS 34Kf@600MHz | |||
| Memory | 32X16Mbit DDR2 Frequency1066 | |||
| Flash | 32M bytes | |||
| Demodulator Type | ISDB SOC Chip Set | |||
| TUNER | Rafael R836 | |||
| Front Panel | USB 2.0 Embedded One Host, | |||
| 4-digit LED display on front panel | ||||
| red LED Standby,green LED Lock | ||||
| Panel KEY, POWER, CH+ ,CH- | ||||
| Rear Panel | Tuner RF input connector | EC-type IEC169-2 Female | ||
| Tuner RF Loop through connector | IEC-type IEC169-24 Male | |||
| HDMI V1.3/V1.4 | ||||
| RCA CVBS AL AR Connector x1 | ||||
| Ypbpr RCAx1 | ||||
| Coaxial x1 | ||||
| Power AC100~240V 50Hz/60Hz | ||||
| Demodulation | ||||
| Terrisal Receiver Standard | ISDB-T broadcast (1, 3, 13 segment) | |||
| Input RF Frequency | VHF:177.143~213.143 MHz:UHF 473.143~803.143MHz. | |||
| Bandwidth | 6MHz/7mhz/8mhz | |||
| Demodulatio | QPSK / 16QAM / 64QAM/QPSK or DQPSK | |||
| FEC | 1/ 2, 2/3, 3/4, 5/6, 7/8 Automatic | |||
| Guard Interval | 1/4,1/8,1/16,1/32 | |||
| FFT Mode | 2K/ 8K/32K | |||
| Input level | -83 - -5dBm | |||
| Sortware Features | ||||
| •used for any ISDB-T countries like Brazil, Peru, Argentina,Chile,Venezuela,PhilippinesEcuador | ||||
| •Supports all ISDB-T broadcast (1, 3, 13 segment), MPEG-2/MPEG-4 AVC/H.264 HD/SD Video , DiVX compliant | ||||
| •Support 3D interface | ||||
| •Support teletext/subtitle/muti-language | ||||
| •Supported 7-Day EPG function, VBI Teletext | ||||
| •AUTO, 16:9 Pillar Box, 16:9 Pan G Scan, 4:3 Letter Box, 4:3 Pan G Scan, 4:3 Full, 16:9 Wide Screen | ||||
| •USB 2.0 for PVR,TIMESHIFT,software upgrade and media files playback | ||||
| •Video output resolution: 480i/576i/480p/576p/720p/1080i/1080P | ||||
| Decoder | ||||
| Video Decoder | Compliant with: MPEG-4 part10/MPEG-2 ISO/IEC 13818 MPEG-4 Simple/Main/Advanced Profile@LEVEL3(10Mbps) MPEG-2 Main Profile# Main Level(15Mbps) H.264 MP#L3(10Mbps).H.264 HP L4.1(25Mbps) | |||
| Audio Decoder | MPEG-1, MPEG-2 (Layer I/II), MP3, AC-3 (Dolby Digital), AAC-LC, WMA E-AC-3 (Dolby Digital Plus) decoding HE-AAC 5.1 multi-chhannel decoding | |||
| Powerful Multimedia Features | ||||
| MediaCodec | avi. mpg, .dat, .vob, .div, .mov, .mkv, .jpeg, .ts etc | |||
| Audio Codec | WMA,MP3,AAC (.wma,.mp3,m4a) | |||
| Photo Codec | JPEG, BMP, PNG | |||
| License | ||||
| Optional DTS, Dolby Digital, Dolby Digital Plus, RM/RMVB, Divx License. | ||||
| Accessories | ||||
| Accessories | gift box | |||
| AV cable optional | ||||
| HDMI cable optional | ||||
| IR remote control | ||||
| User Manual | ||||
STB size : 168*90*40MM
Carton content: 40 pieces se top box
Carton weight : 22kg
