mpeg4 digital receiver

FOB Price

Negotiable / Piece

100 Pieces(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name

SHIDA

Model Number

SDC-3000MSD

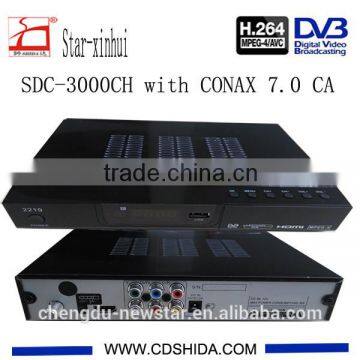

Full SD DVB-C Receiver with Conax CAS7.0
Easy to use and attractive menu

Product Description

Specifications:
1.Fully SD/HD DVB-C compliant,support full HD 1080p
2.Support SD/HD MPEG2 and MPEG4 AVC H.264
3.Support Conax,/Dexin/JX/SC CA [ Option ]
4.Auto and manually scan all available TV and radio channels
5.Powerful and highly effective 7-day EPG function
6.Multi-language menu,subtitle and audio output supported
7.USB 2.0 for PVR,TIMESHIFT,software upgrade and media files playback
8.Support aspect ratio 16:9, 4:3,Pan&Scan,letter box.
9.Support parental local and Teletext
10.Easy to use and attractive menu
11.Support various media files,including music,photo and movie files

Tuner and Demodulation parameter:
RF input frequency: 44MHz~862MHz bandwidth:6/8MHz
Demodulation: 16,32,64 , 128,256 QAM
Symbol rate: 0.7 ~ 7Mbaud
Input impedance:75Ω
RF IN connector type: F-type

Main chipset: MSD5019

Input and Output
Common Interface
USB
Coaxial
CVBS
L/R AUDIO
YUV
ANT IN/OUT
DC IN
Accessories Included (in Price above)
AV cables
User manual
Remote
Battery
Warranty card
Adaptor
