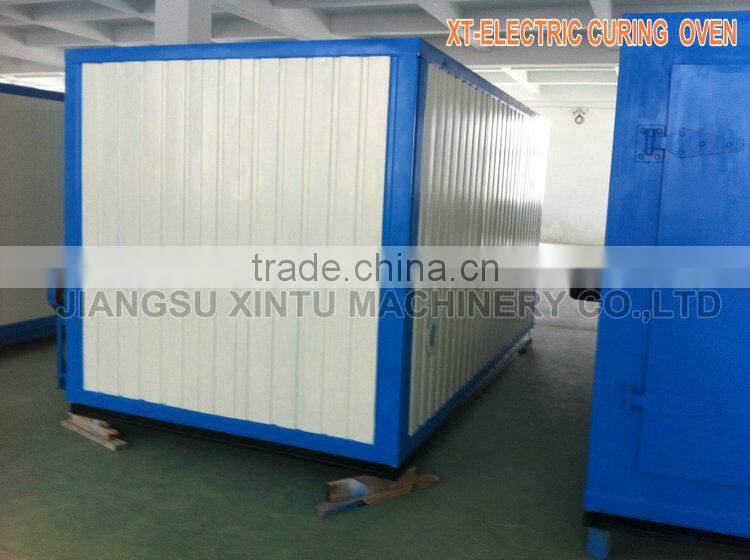

Electric Powder Coating Drying Oven

Specifications

 ELECTRIC POWERED COATING DRYINGOVEN

 XT- Electric Powder coating drying oven   is one equipment to curing the powder after the powder sparying processing finshed in the powder spray booth , it's heated by 380V/AC 50/60HZ electric which could be sourced everywhere .

Application : Because the specific dimension according to requirement by customer, it is widely used industrial metal products powder curing, liquid painting curing, and another home-working products curing  such as ornmamental metal fences, gates ,etc.

Working processing: By this Electric curing oven , The coated film or powder on the surface of workpiece is melted by fixed fushing point  temperature (heated by electric burner), flowing flat by surface tension ,then finished the curing working; After cooling, the workpiece surface is coated smooth and glossy powder coating ,which effectively  get good anti-rust and anti-corrosion  properity.

Specification and features of   Electric Powder coating drying oven

1.   Electric Powder coating drying oven substrate: Structural frame, Galvanizing sheet and plate, stailess steel etc.

2. Custom Working temperature: Room temperature~300 °C or cutomized according to requirement.

3. Heat insulation wall : High quality heat insulation material with 90mm, 120mm ,150 mm thickness.

4. Complete Inner Heating aire circulation system prevent the loss of source ,saving the electric cost.

5. Assembling and intergrated structure electric powder curing oven is available.

6. Dimension : Customized according to requirement by customer;

7. Workingpiece trolleys and sliding loading trolleys are available according to requirement.

8. Besides this batch curing oven, Double doors converyorised curing oven is customized too.

9. Electric energy consumption: Depends on your curing temperature .

Processing of   Electric Powder coating dtrying oven

Spraying good workpiece push curing oven, heating to the predetermined temperature (usually 185 degrees) and heat preservation corresponding time (20 minutes). The High temperature heat resistance Circulating fan can  Can guarantee the  oven internal places (including corner) have the same temperature.Blow on take out cooling namely get finished.

Electric Powder coating drying oven operation instruction

1. heating curing oven,Start the fan button, the fan start to work, then the burner start to work followed so that the curing oven being heated.

2.set the temperature 180 degrees(0-300 degrees),While the temperature up to be the set temperature, the burner stop working. After the heat preservation time being 10 minutes(0-60minutes), the bell alarm. The next, close all control units so that the heating system and fan stop working.

3.open the curing oven door, taking out workpieces.

According to the customer's requirement,We can made all kinds size of  curing oven.
Heating source: Electricity power

Remarks: Because the workpiece size ,output decide te Electric curing oven dimension ; Working temperature decides the equiped Heat-burner power and quantity, so for our accurate quoation to you, please kindly provide the information as following:
