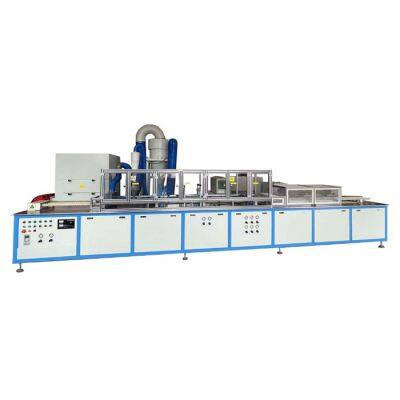

HY-K09 Electric toothbrush 3 small stator and rotor electrostatic powder coating machine

HY-K09 Electric toothbrush 3# small stator and rotor electrostatic powder coating machine

The motor stator electrostatic powder coating machine is an automated equipment specially used for the surface insulation treatment of the motor stator coil. Its core technology combines the electrostatic adsorption principle with the powder spraying process.

1. Working principle ?
?Electrostatic adsorption?
The equipment charges the powder particles through a high-voltage electrostatic generator (built-in or external to the spray gun). The charged powder is directional adsorbed on the grounded stator surface under the action of the electric field force to form a uniform coating. ?
?Powder supply system?
The powder is stored in a powder supply barrel or a vibrating screen container and transported to the spray gun through a Venturi powder pump or a pneumatic device to ensure that the powder flow is stable and controllable. ?Closed-loop control?
A digital controller is used to adjust parameters such as voltage, current, and powder atomization amount. Some equipment supports intelligent feedback (such as AFC current control and iFlow flow control) to improve spraying accuracy. ?
?2. Equipment composition?
?Spray gun unit?
The core component is an electrostatic spray gun, with a built-in high-voltage generator or an external controller in the gun body. Some models are equipped with a remote operation panel for real-time adjustment of spray parameters. ?Powder supply device?
It includes a powder barrel or vibrating screen powder supply system. The vibration platform can prevent powder agglomeration and ensure continuous powder supply. ?
?Recycling system?
Equipped with a powder recycling device, which recycles unabsorbed powder through air circulation, reduces waste and improves environmental protection?.
?Curing unit?
Some equipment integrates a curing oven, which melts and levelizes the powder by heating to form a dense insulation layer?.

3. Technical advantages?
?Coating uniformity?
Electrostatic adsorption can cover complex structures (such as stator slots), avoiding the problems of sagging or missing coating in traditional coating?.
?Environmentally friendly and efficient?
The powder utilization rate can reach more than 95%, without solvent volatilization, and meets VOC emission standards?.
?Automation compatibility?
Supports assembly line integration, can be used with a robotic arm or conveyor belt to achieve mass production, and the fast color change function meets the needs of multiple varieties?.

4. Application scenarios?
?Motor stator insulation treatment?
Suitable for insulation coating of stator coils of micro motors, automotive motors, power tool motors, etc., to improve pressure resistance and corrosion resistance?. ?Complex workpiece coating?
Can process special-shaped parts or porous structures to meet high-precision industrial coating needs?.
