Specifications

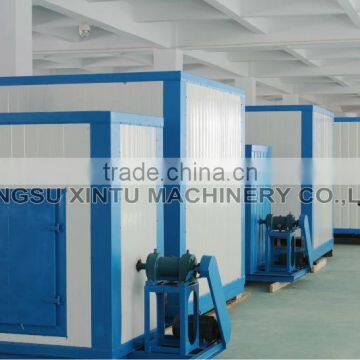

Diesel Powder Painting Curing Oven is usually used in curing powder after powder spraying process ;  Through the hot air circulation system heated by diesel, accomplish the curing process.

Powder Drying oven specification

1. Custom Dimension: L6.0m*W2.0m*H2.8m or customized according to requirement ;Depends on workpiece size and pre-designed workpiece curing output;

2. Powder curing chamber Body: Galvanizing plates. stainless steel & structual steel;

3. Powder curing oven doors: Safe and good exposition resistance performace.

4. Heating burner: Italy Rellio burner

5. Hot air circulation mode: Bottom blowing-in and Top hot-air returning mode;

6. Exhaust air generated by diesel burning is not go into the hot air circulation;

7.Exhasut outlet special valve device automatically control the exhaust density after curing processing;

8.No extra outerside Duct is used ,Full inner circulation system reducing the heating loss and save the diesel cost and consumption.

9.Heat Insulation materials: 90~120mm is adjustable according to working temperature range requirement

10. Supply power: 220V/380V 50/60HZ

REMARKS

Generally,  we make  the curing oven according to actual requirement by customers and exclusive conditions such as workpiece size ,temperature requirement, curing output capacity etc. So please give me your more details and contact with me ,we will supply you best powder curing ovens and our best service to you.
