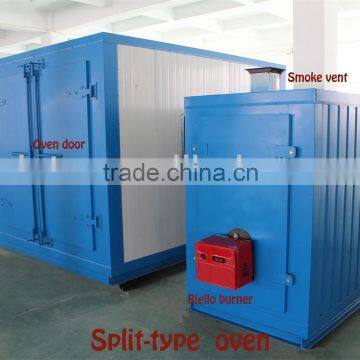

Coating Line Curing Oven

Specifications

Coating Line Curing Oven

 Product configuration:

1. Size: L6.0m*W2.0m*H2.8m(height from the floor)
2. Oven inner galvanized plateδ=1.0mm,
3. Oven outer cold-rolled plateδ=1.0mm,
4. Oven, its good overall appearance with surface strength processed &outer surface coating sprayed.
5. Insulation materials: The distance between the inside and outside of oven is 120mm, use the best quality of insulation cotton, will keep the oven inner temperature to save energy. Oven temperature is controlled by thermocouple sensor components, continuously adjustable temperature settings, with a digital display meter.
6. Oven power supply: Voltage 220V Frequency 50HZ
7. Heating way: gas,oil, electricity
8. Good brand heater, technical date below:
9. Burner: SH-262A 0.74kg/h(Liquefied petroleum gas consumption) 0.8m3/h(Natural gas consumption), power 10.9KW(single). Quantity: 7 sets
10. Fuel pressure: City Gas 70mmAq, natural gas 150mmAq, liquefied petroleum gas 280mmAq

 paint curing oven ( powder drying oven )can be customised  by your requirement  and  the size  of  your  workpiece
For buyers who are genuinely interested in the price details,pls send us a message stating your requirement and place of destination

  .
