Beauty Analyzer

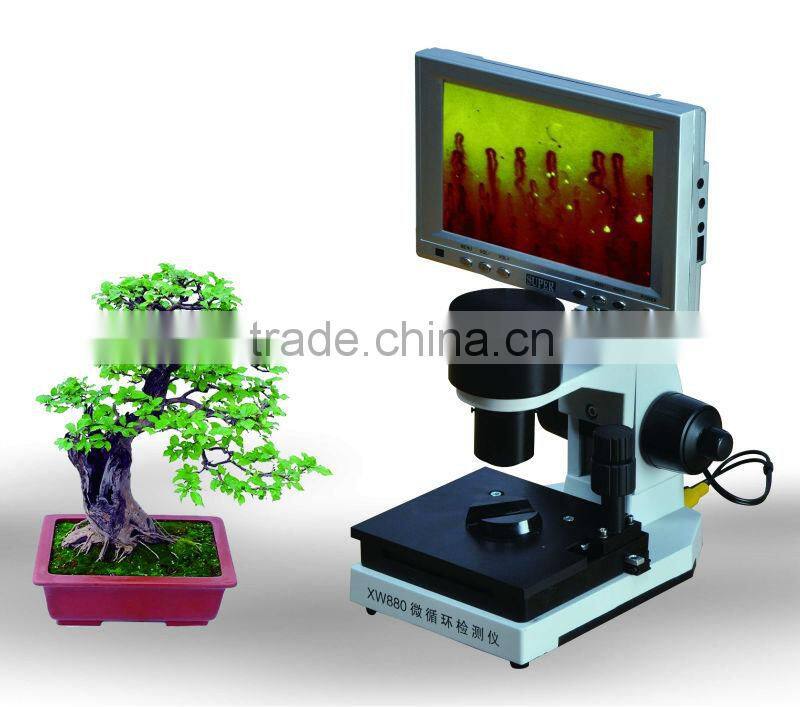

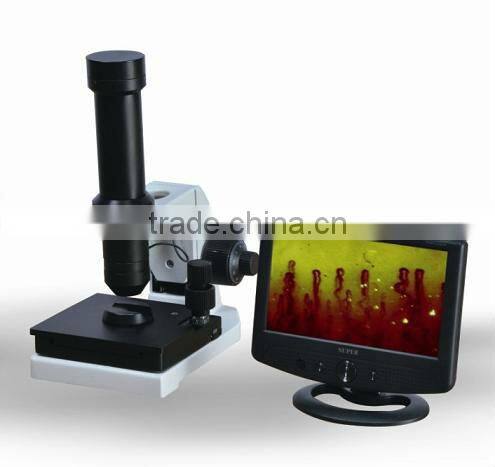

TR8000B Microcirculation Analyzer with LCD

Standard Configuration:
7  inches color LCD monitor
Portable microcirculation microscope
LED light source of extremely long working life
High-resolution color CCD camera
Specialized power controller of reliable performance
Specialized video cable
Specialized testing oil
Specialized manual to guide how to use it
CD about knowledge of microcirculation
Optional:
Laptop computer
Specialized nail fold analysis software
Specialized high quality USB video acquisition card with high transmission rate
Printer for printing reports
Nice-looking trolley

Product Characteristics

Use the international most advanced optical continuous adjustment technology of magnifying power, continuous adjustment with the same axle and no grade

High magnifying power, large depth of field, wide field of vision, super resolution

Latest microscopic analysis and processing system, combines advanced computer imaging processing technology, CCD Digital imaging technology and optical microscopic technology

Technical Parameters

Ratio of object lens magnification change:1:6.5

Magnification range of object lens:2 to 13 times continuous adjustment of magnifying power

Total magnification times: 100 to 650 times

Working distance of object lens: 4 cm

The shining angle of the optic fiber can be adjusted freely, till it reaches the best angle

Hand wheel for focus adjustment, can adjust it tightly or loosely

Eyepiece: 10 times

Adjustment range of eyes distance: 55 to 75 cm

Original CCD Camera which is made in Japan, high resolution, more than 540 lines

Hand piece: tilt 45°, can rotate 360°. Visual degree adjustment:±5°
