LY Series physical process plate oil purifier
- chongqing port
- T/T
You May Like
-
LY-100 plate pressure oil filtering machine/portable oil purification/oil filtration/oil purifier
-
LY Pressure Type Sheet Frame Oil Purifier
-
china LY-30 plate pressure oil purification machine
-
supply LY-125 Pressure Plate oil recycling machine
-
LY-150 Plate Pressure Oil Filtering Machine Series
-
LY-100 Plate Pressure Oil Filtering Machine Series remove impurities from waste oil
Product Details
| Condition | New | Flow | Depend on the different model | |
| Working Pressure | 0~0.5Mpa | Place of Origin | Chongqing, China | |
| Brand Name | junneng | Model Number | LY | |
| Usage | Other, Press Filter | Voltage | 50HZ 380V | |
| Power(W) | Depend on the different model | Dimension(L*W*H) | Depend on the different model | |
| Weight | Depend on the different model | Certification | ISO9001 | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
press filter1.physical process to separate the impuritys and water from the oil.
2.simple structure,easy operation,low co

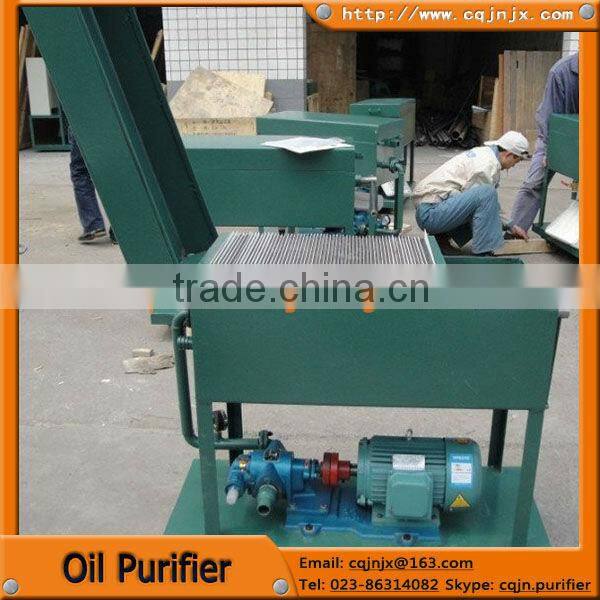

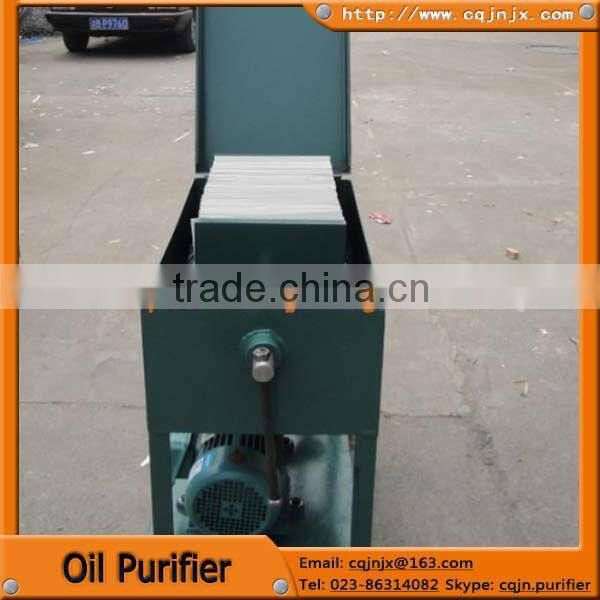

LY Series physical process plate oil purifier
LY Series physical process plate oil purifier is mainly used to separate the impurities and water from the oil. It is suitable for filtering the cooking oil, transformer oil, used lubricating oil and so on. There is filtering media, such as filtering paper or filtering cloth, installed between the plastic filter board and filter plate that will be fixed to form a single filtering room under the pressure of the packing device. The filtering paper or filtering fuse packed between the filter board and filter plate will play a role of filtering. It's characterized by simple structure, easy operation, low cost, act
Technical Parameters
Model | LY-100 | |
Rated Flow(L/min) | 100 | |
Working pressure (MPa) | 0~0.5 | |
Filter Area( square meter ) | ≥1.3 | |
Plate size (mm) | 300*300 | |
Way for compressing | Manual spiral pressure | |
The number of filter box | 17 | |
The Number of plate | 18 | |
Power supply | three-phase 220V/60HZ | |
Total Power (KW) | 2.2KW/6 | |
ilter precision (μm) | ≤5 | |
inlet (outlet) diameter | φ38 | |
Dimension | L(mm) | 850 |
W(mm) | 530 | |
H(mm) | 930 | |
weight(kg) | 130 | |
