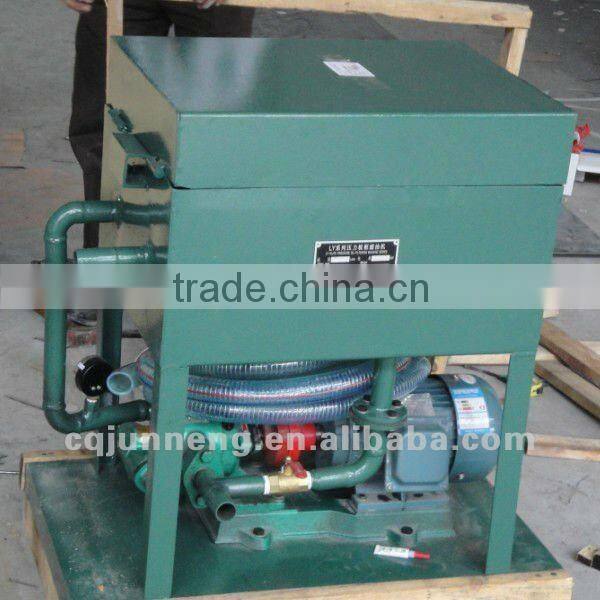

Hydraulic Oil Pressure Oil Purifier
- Chongqing
- T/T
You May Like
-
Pressure Plate Frame Filter For Turbine Oil
-
Pressure Oil Purifier For Transformer Oil Purifier/separater
-
Pressure Plate Frame Filter Oil Machine
-
Plate Pressure Oil Purification Plant/ Oil Recycling Machine
-
LY-100 Plate Frame Pressure Oil Filtering
-
Sell Series LY Plate Pressure Oil Purifier/Lube Oil Retreatment/Transformer Oil Dewatering
Product Details
| Condition | New | Type | Press Filter | |
| Structure | Cartridge | Place of Origin | Chongqing, China | |
| Brand Name | Junneng | Model Number | LY-50 | |
| Power(W) | depend on different model | Weight | depend on different model, Depends on the particular case | |
| Dimension(L*W*H) | depend on different model | Certification | ISO9001 | |
| Warranty | 3 years | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
1.Multi-function Oil Filter2.Easy Operation
3.Removeable
Junneng Pressure Plate Frame Filter For Hydraulic Oil
1.High filtering precision, easily produce excellent filtering performance.
2.Large Filter area, Strong corrupt capability.
3.Filter paper or filter cloth for the selection of Filter material selection.
4.Filter board making by the engineering plastic plate with Long lifetime.
Interesting about this or similar products? The Oil Purifier products of us in this area sells best. Any doubts? Contacts me, i'll introduce it online, or welcome to Chongqing China to visit my factory. You will never feel disappointed about the Quality at such a low price.
Model | LY-30 | LY-50 | LY-100 | LY-125 | LY-150 | LY-200 | LY-300 |
Rated Flow(L/min) | 30 | 50 | 100 | 125 | 150 | 200 | 300 |
Working pressure (MPa) | 0~0.5 | ||||||
Filter Area | ≥0.3 | ≥0.39 | ≥1.3 | ≥1.54 | ≥1.89 | ≥2.01 | ≥3.1 |
Plate size (mm) | 280×280 | 320×320 | |||||
Way for compressing | Manually pressed spiral | ||||||
The number of filter box | 11 | 13 | 17 | 11 | 13 | 19 | 25 |
The Number of plate | 12 | 14 | 18 | 12 | 14 | 20 | 26 |
Power supply | 380V 50HZ | ||||||
Total Power (KW) | 0.75 | 1.1 | 2.2 | 2.2 | 3 | 4 | 5.5 |
Rate (r/min) | 1440 | ||||||
Filter precision (μm) | ≤5 | ≤3 | |||||
Filter size (mm) | 285×290 | 325×330 | |||||
Inlet diameter (mm) | φ32 | φ32 | φ42 | φ50 | φ50 | φ60 | φ60 |
Outlet diameter (mm) | φ25 | φ25 | φ38 | φ42 | φ42 | φ50 | φ50 |
